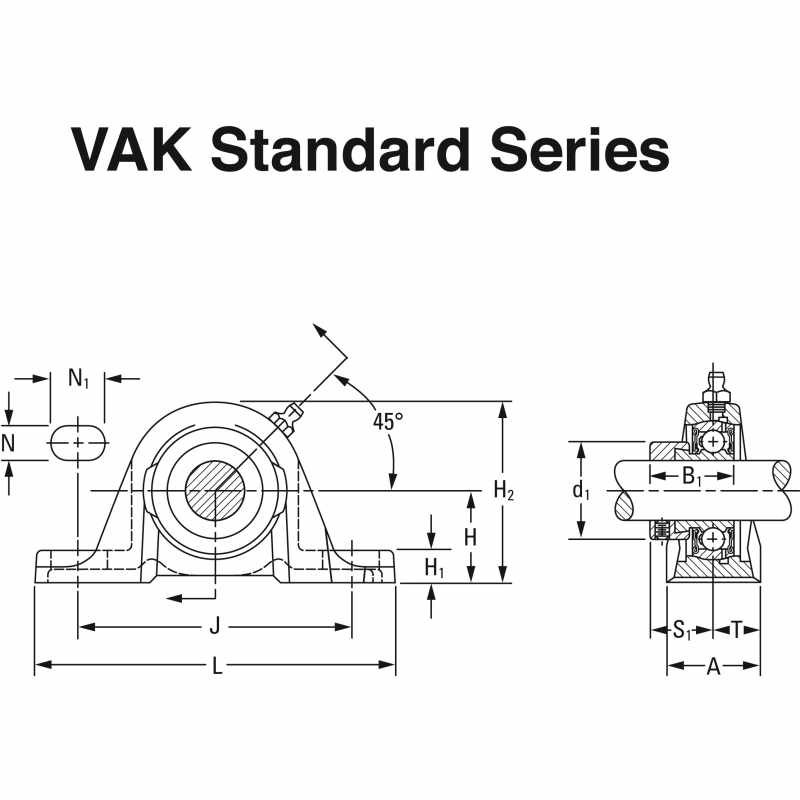

| Base to Center Height H | 39,69 | mm | |
| Total Width A | 39,70 | mm | |
| Bolt Hole Width N | 14,30 | mm | |
| Foot Height H1 | 13,50 | mm | |
| Abmessung d1 | 44,10 | mm | |
| Dimension S1 | 26,71 | mm |
| Total Length L | 157,20 | mm | |
| Bolt Hole Spacing J | 117,50 | mm | |
| Bolt Hole Length N1 | 23,80 | mm | |
| Total Height H2 | 80,20 | mm | |
| Abmessung B1 | 35,70 | mm | |
| Abmessung t | 19,90 | mm |
| Shaft Size d | 1 1/8 in | ||
| Bearing Number | GRA102RRB | ||
| Seal Type | Molded Shroud | ||
| Gewicht | 1,24 | Kg |
| Bearing Type | Ball Bearing | ||
| Baureihe | Standard | ||
| Housing Construction | Two-Bolt Pillow Block | ||
| Alternate Part Name | VAK1 1/8 |
