FESTO VACS
13 Produkte

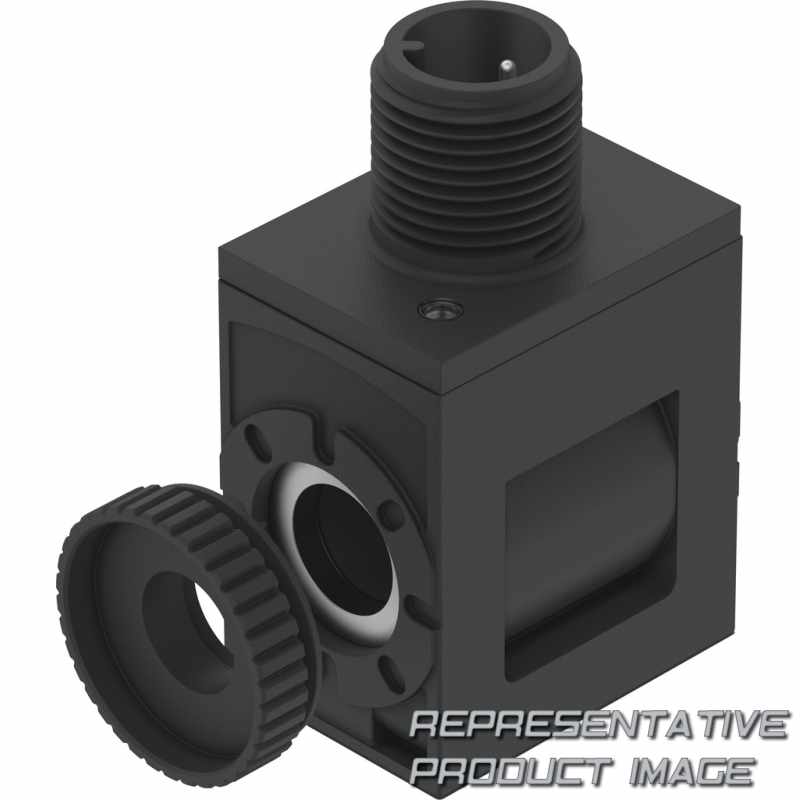

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VACS – Solenoid coil VACS. Finden Sie das passende Produkt durch Filtern mit Elektrischer Anschluss, Nominal operating voltage, Circuitry und Anzeige.
VACS Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VACS | VACS-C- - | Solenoid coil VACS |
Typcode zur Katalognummer VACS,
VACS-C- -
| 001 | Series |
|---|---|
| VACS | Solenoid coil VACS |
| 002 | Solenoid coil type |
| C | Solenoid coil width of 18 mm for armature tube of 8 mm |
| 003 | Electrical connection |
| C1 | Plug pattern type C, to EN 175301-803 |
| R1 | Individual connector M8, 4-pin |
| R3 | Single plug M12 A-coded, according to EN 61076-2-101 |
| R4 | Single plug M12 A-coded, pin assignment according to DESINA |
| R8 | Individual connector M8, 3-pin |
| 004 | Nominal operating voltage |
| 1 | 24 V DC |
| 1A | 24 V AC/50-60 Hz |
| 3W | 230 V AC/240 V AC/50-60 Hz |
| 5 | 12 V DC |
| 7 | 48 V DC |
| 7A | 48 V AC/50-60 Hz |
| 16B | 120 V AC/60 Hz and 110V AC/50-60 Hz |
| 005 | Circuitry |
|---|---|
| None | |
| R | Holding current reduction with integrated protective circuit |
| RA | Holding current reduction, analogue, with integrated protective circuit |
| 006 | Display |
| None | |
| L | LED |
