FESTO VACF
34 Produkte

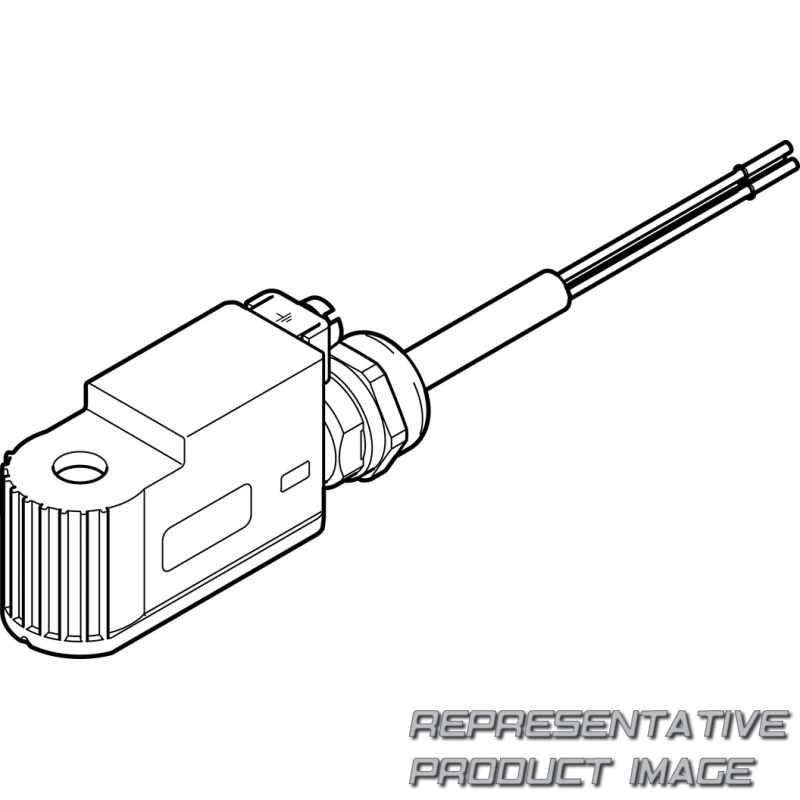

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VACF – Solenoid coil VACF. Finden Sie das passende Produkt durch Filtern mit Solenoid coil type, Elektrischer Anschluss, Nominal operating voltage, Anzeige, Cable length [m], EU certification und Type of ignition protection.
VACF Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VACF | VACF- - - | Solenoid coil VACF |
Typcode zur Katalognummer VACF,
VACF- - -
| 001 | Series |
|---|---|
| VACF | Solenoid coil VACF |
| 002 | Solenoid coil type |
| B | Solenoid coil, size 22/8 |
| A | Solenoid coil size 30/8 |
| 003 | Electrical connection |
| A1 | Plug pattern type A, to EN 175301-803 |
| B2 | Connection pattern type B, industry standard |
| C1 | Plug pattern type C, to EN 175301-803 |
| K1 | Cable |
| R1 | Individual connector M8, 4-pin |
| R3 | Single plug M12 A-coded, according to EN 61076-2-101 |
| R4 | Single plug M12 A-coded, pin assignment according to DESINA |
| R8 | Individual connector M8, 3-pin |
| 004 | Nominal operating voltage |
| 1 | 24 V DC |
| 1A | 24 V AC/50-60 Hz |
| 3A | 230 V AC/50-60 Hz |
| 3W | 230 V AC/240 V AC/50-60 Hz |
| 5 | 12 V DC |
| 7 | 48 V DC |
| 7A | 48 V AC/50-60 Hz |
| 16B | 120 V AC/60 Hz and 110V AC/50-60 Hz |
| 005 | Circuitry |
|---|---|
| None | |
| RA | Holding current reduction, analogue, with integrated protective circuit |
| 006 | Display |
| None | |
| L | LED |
| 007 | Cable length [m] |
| Without | |
| 1 | 1 m |
| 5 | 5 m |
| 10 | 10 m |
| 20 | 20 m |
| 008 | EU certification |
| None | |
| EX4 | II 2GD |
| 009 | Type of ignition protection |
| None | |
| M | Encapsulation |
