FESTO VACC
97 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VACC – Solenoid valve, series C. Finden Sie das passende Produkt durch Filtern mit Solenoid coil type, Power consumption, Elektrischer Anschluss, Nominal operating voltage, Circuitry, EU certification, Certification und Type of ignition protection.
VACC Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VACC | VACC- - - - | Solenoid valve, series C |
Typcode zur Katalognummer VACC,
VACC- - - -
| 001 | Series |
|---|---|
| VACC | Solenoid valve, series C |
| 002 | Solenoid coil type |

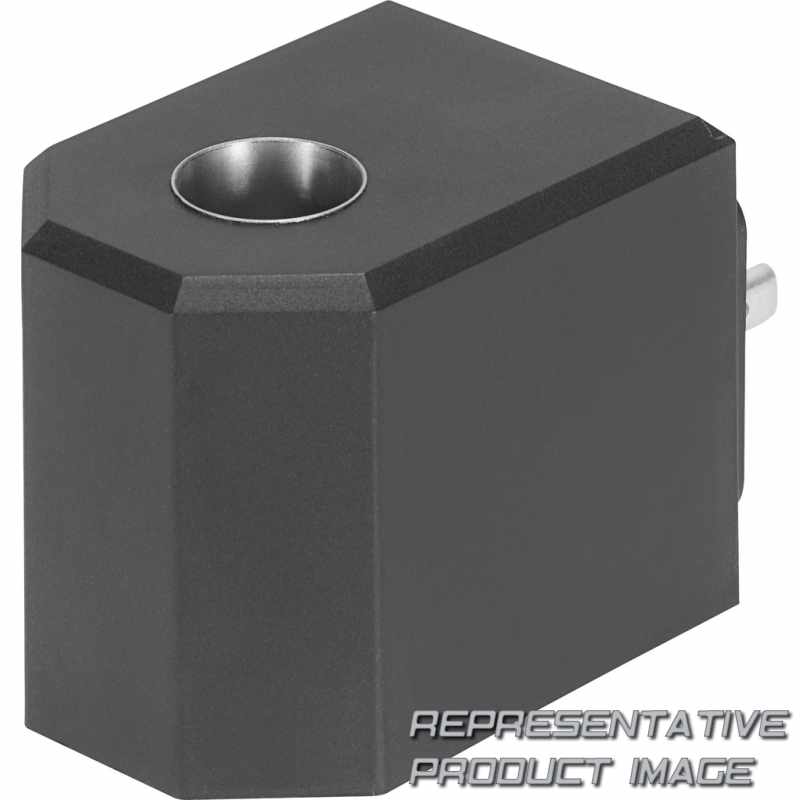

| S13 | Solenoid coil, shaft 13 mm |
| S18 | Solenoid valve, shaft 18 mm |
| 003 | Power consumption |
| 11 | 1.1 W |
| 18 | 1.8 W |
| 25 | 2.5 W |
| 35 | 3.5 W |
| 70 | 7 W |
| 120 | 12 W |
| 004 | Electrical connection |
| A1 | Connection pattern type A, to EN 175 301 |
| K4 | Cable connector metric |
| K5 | Cable connector NPT |
| 005 | Nominal operating voltage |
| 1 | 24 V DC |
| 1A | 24 V AC/50-60 Hz |
| 1U | 24 V DC and AC |
| 2A | 110 V AC/50-60 Hz |
| 2U | 110 V DC and AC |
| 3 | 230 V DC |
| 3A | 230 V AC/50-60 Hz |
| 3U | 230 V DC and AC |
| 7 | 48 V DC |
| 7U | 48 V DC and AC |
| 16 | 120 V DC |
| 16U | 120 V DC and AC |
| 27 | 60 V DC |
| 27U | 60 V DC and AC |
| 006 | Circuitry |
|---|---|
| None | |
| F | Fuse |
| 007 | EU certification |
| None | |
| EX4 | II 2GD |
| 008 | Certification |
| None | |
| U2 | cULus, hazardous environment, USA and Canada (NEC 500) |
| NE4 | NEPSI, II 2GD |
| NM4 | INMETRO, II 2GD |
| 009 | Type of ignition protection |
| None | |
| A | Intrinsically safe |
| D | Flameproof encapsulation |
| ME | Encapsulation, enhanced security |
