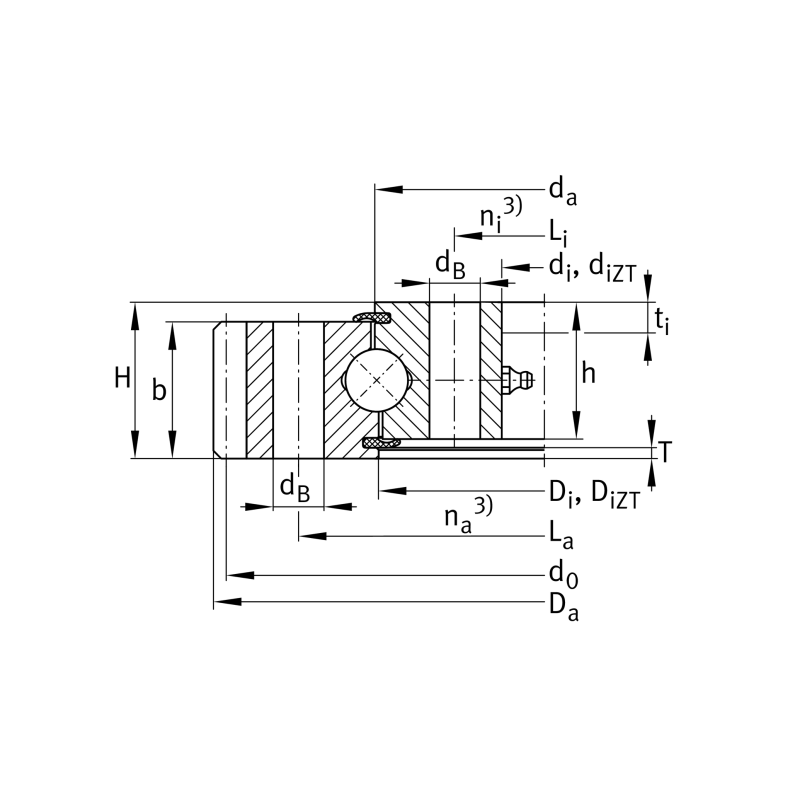

| Bore diameter | d | 171 | mm |
| Außen-Ø | D | 318,60 | mm |
| Diameter centring outer ring tolerance | IT8 | ||
| Length centering inner ring | t | 6 | mm |
| height of individual ring | hi | 35 | mm |
| Normal radial clearance max. | 0,16 | ||
| Normal axial clearance max. | 0,26 |
| Höhe | T | 40 | mm |
| Diameter centring outer ring | Di ZT | 236 | mm |
| Length centering outer ring | T | 2,30 | mm |
| Width Outer ring | C | 35 | mm |
| Normal radial clearance min. | 0,04 | ||
| Normal axial clearance min. | 0,07 |
| Outside diameter inner ring | da | 236 | mm |
| Pitchcircle diameter fixing holes inner ring | Li | 195 | mm |
| Number of fixing holes in outer ring | na | 12 | |
| Max. radial load fixing screws (friction locking) | Fr zul | 49,600 | |
| Modul of gearing | m | 4 | mm |
| Width gearing | b | 35 | mm |
| Max. tooth force against tooth fracture (at a shock factor of 1,35) | Fz max | 16,100 |
| Number of fixing holes in inner ring | ni | 12 | |
| Fixing bore | dB | 13 | mm |
| Pitchcircle diameter fixing holes outer ring | La | 275 | mm |
| Pitch circle diameter gearing | d0 | 312 | mm |
| Number of teeth | z | 78 | |
| Max. tooth force root fatigue strenght (at a shock factor of 1,2) | Fz norm | 11,000 |
