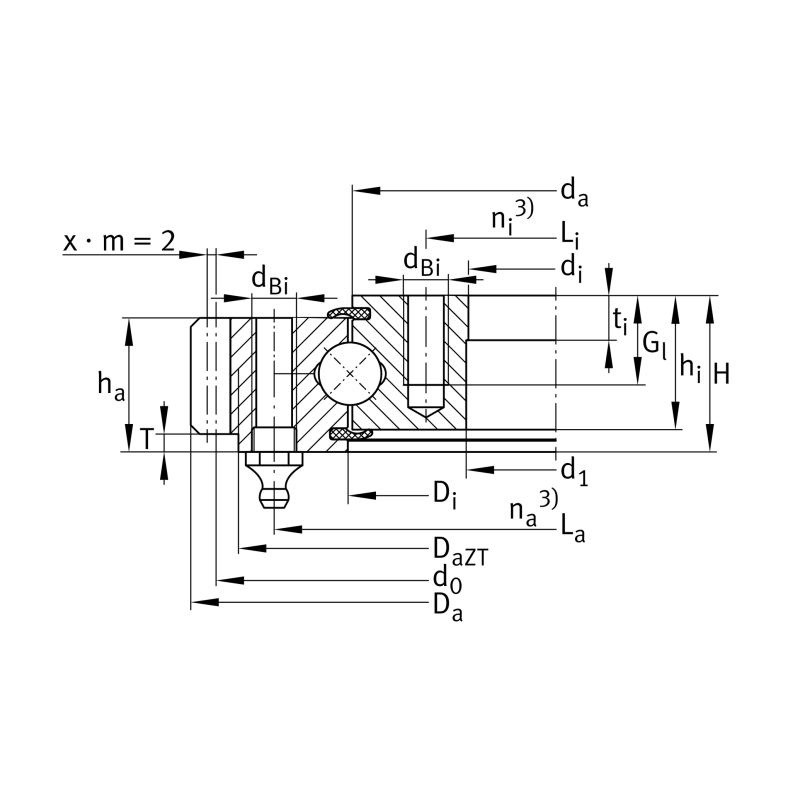

| Bore diameter | d | 136 | mm |
| Bore diameter lower tolerance | -0,50 | mm | |
| Diameter centring inner ring upper tolerance | 0,20 | mm | |
| Außen-Ø | D | 259,36 | mm |
| Diameter centring outer ring lower tolerance | -0,07 | mm | |
| Length centering inner ring | t | 10 | mm |
| height of individual ring | hi | 30 | mm |
| Normal radial clearance max. | 0,10 | ||
| Normal axial clearance max. | 0,20 |
| Bore diameter upper tolerance | 0,50 | mm | |
| Diameter centring inner ring | diZT | 135 | mm |
| Höhe | T | 35 | mm |
| Diameter centring outer ring | Di ZT | 238 | mm |
| Length centering outer ring | T | 4 | mm |
| Width Outer ring | C | 30 | mm |
| Normal radial clearance min. | 0,03 | ||
| Normal axial clearance min. | 0,05 |
| Outside diameter inner ring | da | 187 | mm |
| Pitchcircle diameter fixing holes inner ring | Li | 154 | mm |
| Pitchcircle diameter fixing holes outer ring | La | 222 | mm |
| Thread depth fixing hole | Gl | 20 | mm |
| Pitch circle diameter gearing | d0 | 248 | mm |
| Number of teeth | z | 62 | |
| Width gearing | b | 26 | mm |
| Max. tooth force against tooth fracture (at a shock factor of 1,35) | Fz max | 15,300 |
| Number of fixing holes in inner ring | ni | 16 | |
| Number of fixing holes in outer ring | na | 16 | |
| Tread fixing bore | dBa | M10 | |
| Max. radial load fixing screws (friction locking) | Fr zul | 44,800 | |
| Modul of gearing | m | 4 | mm |
| Profile shift | 2 | ||
| Max. tooth force root fatigue strenght (at a shock factor of 1,2) | Fz norm | 10,400 |
