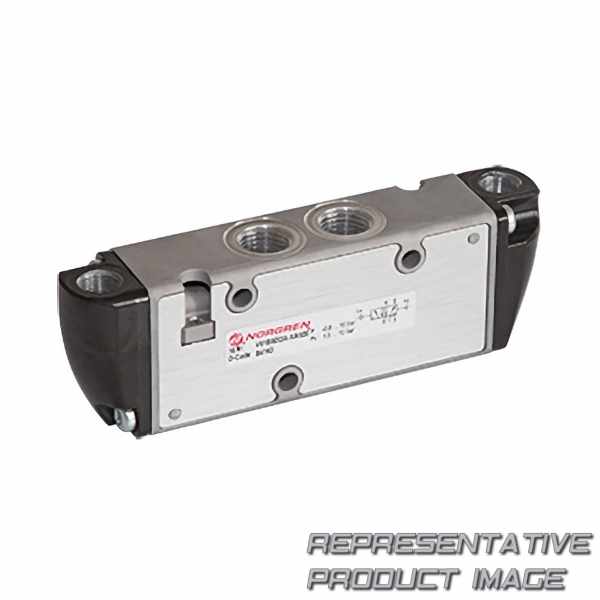

NORGREN V61B5DDA-XA020 inline valves - pilot

Name: V61B5DDA-XA020 NORGREN
Brand: NORGREN
SKU: 785760-de-eur
Price: 125.17 EUR
Availability: InStock

125,17 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Actuation Type	air pilot / air pilot
max. Druck	-0.9 ... 10 bar

Breite	68mm
Gewicht	252g

actuation		air pilot / air pilot
data performance b10 value number of cycles		12000000
eu country of origin		czechia
flow flow dm3sec		21.67 dm3/sec
Medium		compressed air
operating pressure pressure bar min to max range		-0.9 ... 10 bar
operating temperature f temperature fahrenheit min to max range		14 ... 122 °f
height length millimetre		42 mm
weight weight kilogram		0.252 kg
pilot pressure pressure bar min to max range		1.5 ... 10 bar
range		v60…63
springs		stainless steel

body		aluminium
data performance shelf life		3 years
Features		high flow rate
flow flow litresperminute		1300 l/m
mil spec		available on request
operating pressure psi pressure psi min to max range		-13 ... 145 psi
operating temperature temperature celsius min to max range		-10 ... 50 °c
length length millimetre		165 mm
width length millimetre		68 mm
Anschlussgröße		g1/4
spool		stainless steel
valve operation		5/2
