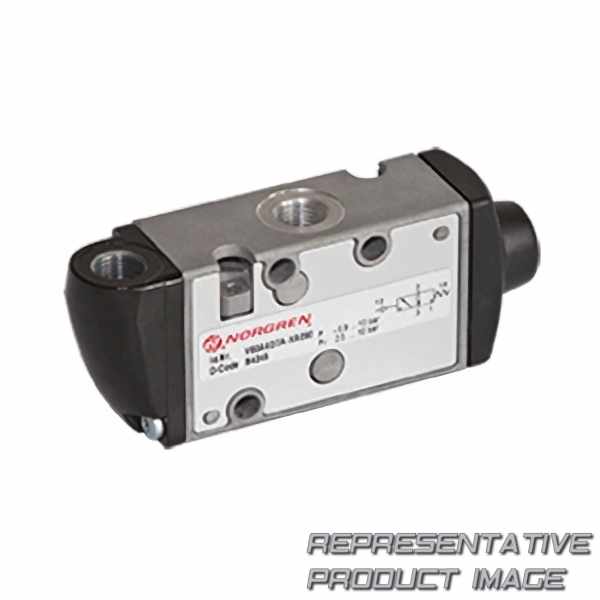

NORGREN V60A4D7A-XA090 inline valves - pilot

Name: V60A4D7A-XA090 NORGREN
Brand: NORGREN
SKU: 785969-de-eur
Price: 106.5 EUR
Availability: InStock

106,50 €

3 Stk. mit 2 bis 5 Tagen Lieferzeit nach United States

Technische Daten

Actuation Type	air pilot / spring return
max. Druck	-0.9 ... 10 bar

Breite	50mm
Gewicht	120g

actuation		air pilot / spring return
data performance b10 value number of cycles		12000000
eu country of origin		czechia
flow flow dm3sec		12.5 dm3/sec
Medium		compressed air
operating pressure pressure bar min to max range		-0.9 ... 10 bar
operating temperature f temperature fahrenheit min to max range		14 ... 122 °f
height length millimetre		32 mm
weight weight kilogram		0.12 kg
pilot pressure pressure bar min to max range		2.5 ... 10 bar
range		v60…63
springs		stainless steel

body		aluminium
data performance shelf life		3 years
Features		high flow rate
flow flow litresperminute		750 l/m
mil spec		available on request
operating pressure psi pressure psi min to max range		-13 ... 145 psi
operating temperature temperature celsius min to max range		-10 ... 50 °c
length length millimetre		140 mm
width length millimetre		50 mm
Anschlussgröße		g1/8
spool		stainless steel
valve operation		3/2
