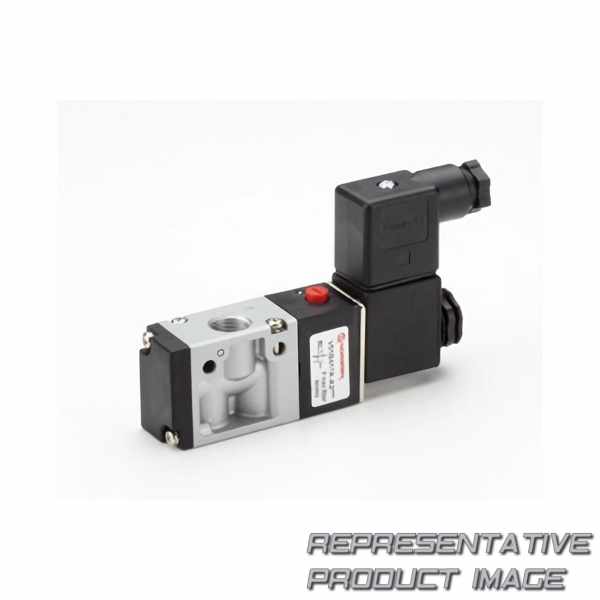

NORGREN V51B417A-A213J inline valves - solenoid

Name: V51B417A-A213J NORGREN
Brand: NORGREN
SKU: 779431-de-eur
Price: 212.85 EUR
Availability: InStock

212,85 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Actuation Type	solenoid pilot / spring return
max. Druck	2 ... 8 bar
Versorgungsspannung	24vdc, 2w

Breite	67mm
Gewicht	250g

actuation		solenoid pilot / spring return
data performance b10 value number of cycles		8000000
Elektrischer Anschluss		22mm industrial standard
flow flow dm3sec		17 dm3/sec
Handhilfsbetätigung		turn to lock
mil spec		available on request
operating pressure pressure bar min to max range		2 ... 8 bar
operating temperature f temperature fahrenheit min to max range		23 ... 122 °f
height length millimetre		22.5 mm
weight weight kilogram		0.25 kg
Anschlussgröße		g1/4
spool		aluminium alloy
valve operation		3/2

body		diecast aluminium
data performance shelf life		10 years
eu country of origin		germany
flow flow litresperminute		1020 l/m
Medium		compressed air
nuts and screws		nickel plated steel
operating pressure psi pressure psi min to max range		29 ... 116 psi
operating temperature temperature celsius min to max range		-5 ... 50 °c
length length millimetre		144.5 mm
width length millimetre		67 mm
range		v50…53
springs		stainless steel
voltage		24vdc, 2w
