| Adapter sleeve reference | H2307 | ||
| Operating temperature min. | -20 °C | ||

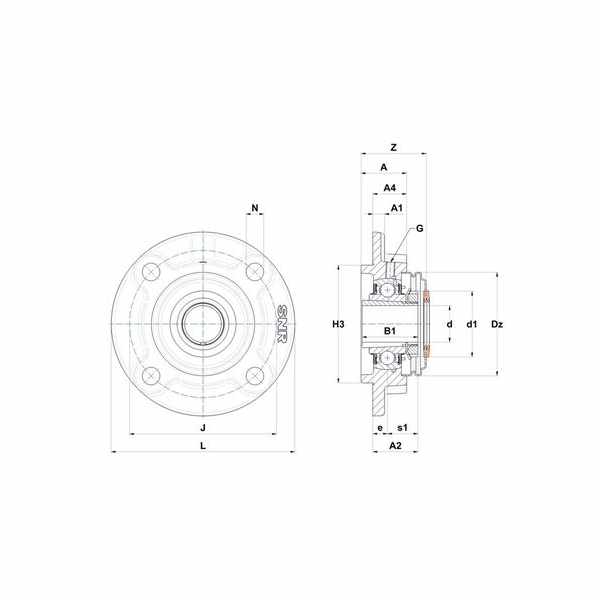

| C - Dynamic load rating | 25,7 kN | ||
| N - Mounting hole dimension | 14 mm | ||
| J - Mounting holes distance | 110 mm | ||
| G - Grease fitting | M6x1 | ||
| Dz - Outer diameter of cover | 80 mm | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 43 mm | ||
| A2 - Total height from mounting surface | 33,5 mm | ||
| A - Housing height | 34 mm |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 15,2 kN | ||
| Z - Width over covers | 48,8 mm | ||
| L - Housing width / diameter | 135 mm | ||
| H3 - Centering dia | 90 mm | ||
| e - Distance mounting surface to bearing center | 11 mm | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 52 mm | ||
| A4 - Housing height from mounting surface | 26 mm | ||
| A1 - Housing foot height / flange height | 9 mm | ||
| Brand | SNR |
