| Brand | SNR | ||

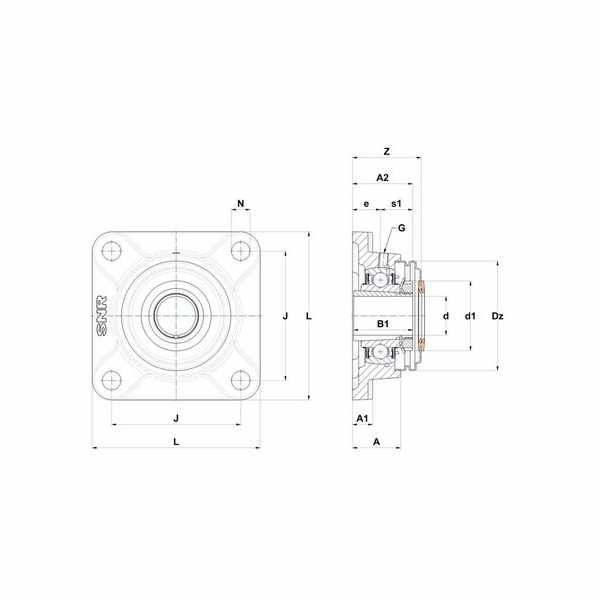

| A1 - Housing foot height / flange height | 18 mm | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 59 mm | ||
| Dz - Outer diameter of cover | 110 mm | ||
| G - Grease fitting | M6x1 | ||
| L - Housing width / diameter | 162 mm | ||
| Z - Width over covers | 62,8 mm | ||
| C0 - Static load rating | 29,2 kN | ||
| Operating temperature max. | 100 °C |
| A - Housing height | 43 mm | ||
| A2 - Total height from mounting surface | 54 mm | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 75 mm | ||
| e - Distance mounting surface to bearing center | 25 mm | ||
| J - Mounting holes distance | 130 mm | ||
| N - Mounting hole dimension | 19 mm | ||
| C - Dynamic load rating | 43,55 kN | ||
| Operating temperature min. | -20 °C | ||
| Adapter sleeve reference | H2311 |
