| Rolling element frequency (60 t./min.) | 5,699 Hz | ||
| Inner ring frequency (60 t./min.) | 6,437 Hz | ||
| Recommended tightening torque for set screw | 33 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 66 kN | ||

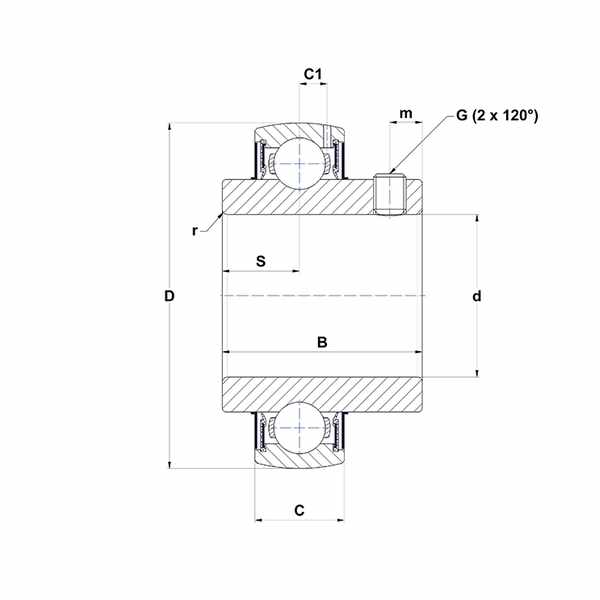

| S - Dist. cent. of raceway to face IR on side opp. lock. device | 33,3 mm | ||
| m - Distance to set screw | 12 mm | ||
| C1 - Distance center of OR to center of lubrication zone | 9 mm | ||
| Brand | SNR |
| Cage frequency (60 t./min.) | 0,415 Hz | ||
| Outer ring frequency (60 t./min.) | 4,563 Hz | ||
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 49,5 kN | ||
| SW - Wrench size | 6 mm | ||
| r - Radius Inner Ring | 2 | ||
| G - Set screw size | M12x1,25 | ||
| C - Width of Outer Ring | 30 mm |
