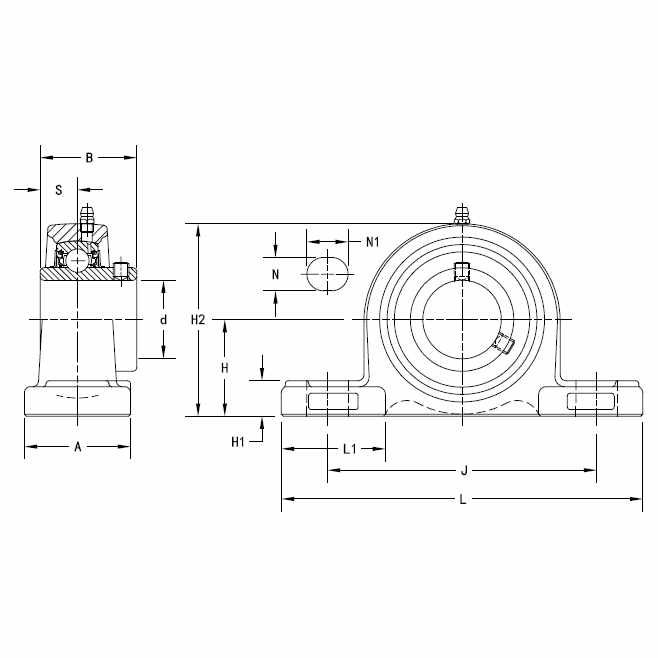

| Base to Center Height H | 57,20 | mm | |
| Housing Width A | 60 | mm | |
| Bolt Hole Size N | 20 | mm | |
| Foot Height H1 | 21 | mm | |
| Abmessung L1 | 60 | mm | |
| Center of Bearing from End S | 19 | mm |
| Total Length L | 206 | mm | |
| Bolt Hole Spacing J | 159 | mm | |
| Bolt Hole Length N1 | 22 | mm | |
| Total Height H2 | 113 | mm | |
| Inner Ring Width B | 51,60 | mm |
| Bearing Number | UC210 | ||
| UPC Code | 87.796.072.435 | ||

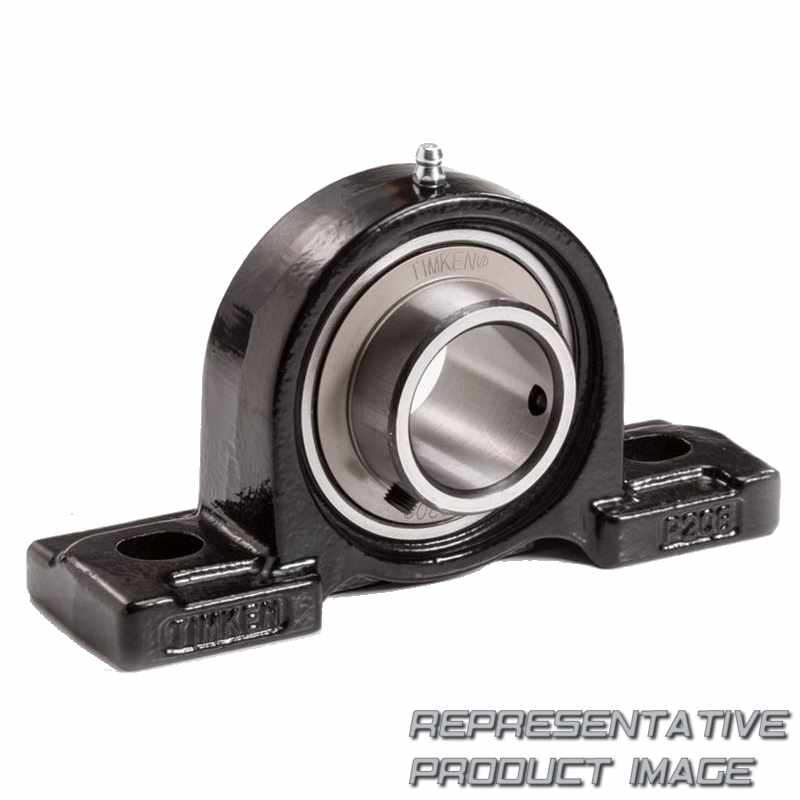

| Housing Construction | Two-Bolt Pillow Block |
| Shaft Size d | 50 | mm | |
| Locking Style | Set Screw Locking | ||
| Gewicht | 2,90 | Kg |
