| Brand | SNR | ||

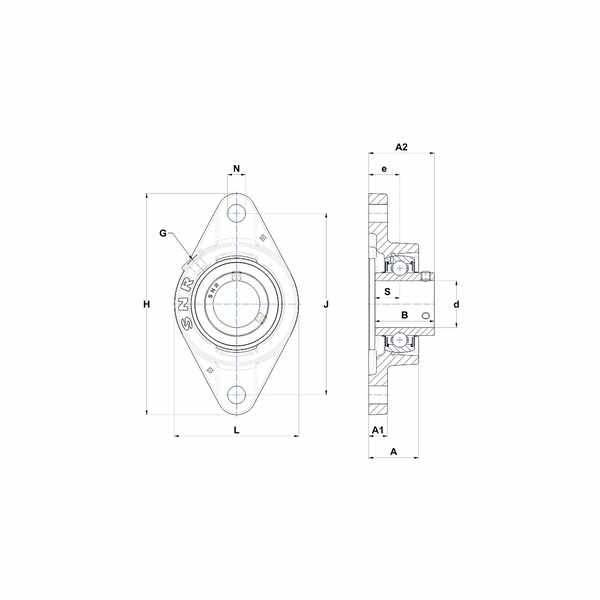

| A1 - Housing foot height / flange height | 13 mm | ||
| e - Distance mounting surface to bearing center | 28 mm | ||
| H - Housing length, width or diameter | 190 mm | ||
| L - Housing width / diameter | 116 mm | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 19 mm | ||
| C0 - Static load rating | 23,2 kN | ||
| Operating temperature max. | 200 °C |
| A - Housing height | 41,6 mm | ||
| A2 - Total height from mounting surface | 60,6 mm | ||
| G - Grease fitting | R1/8" | ||
| J - Mounting holes distance | 157 mm | ||
| N - Mounting hole dimension | 18 mm | ||
| C - Dynamic load rating | 35,1 kN | ||
| Operating temperature min. | -20 °C | ||
| Recommended tightening torque for set screw | 22 N-m |
