| Brand | SNR | ||

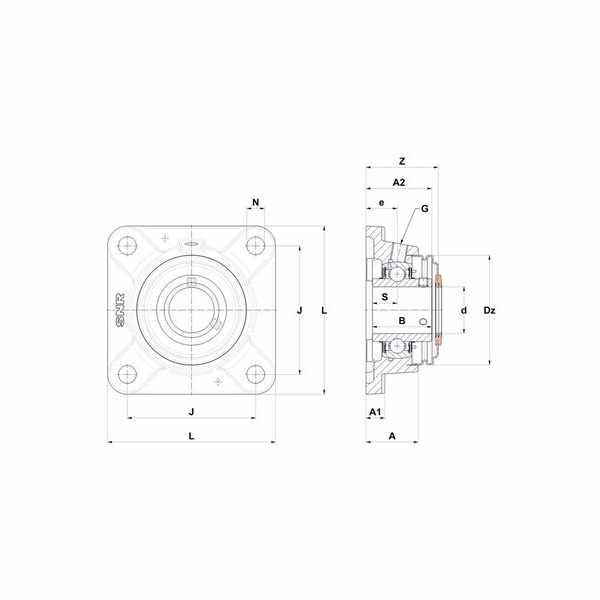

| A1 - Housing foot height / flange height | 12,5 mm | ||
| Dz - Outer diameter of cover | 80 mm | ||
| G - Grease fitting | R1/8" | ||
| L - Housing width / diameter | 118 mm | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 17,5 mm | ||
| C - Dynamic load rating | 25,7 kN | ||
| Operating temperature min. | -20 °C | ||
| Recommended tightening torque for set screw | 11,5 N-m |
| A - Housing height | 36 mm | ||
| A2 - Total height from mounting surface | 46,4 mm | ||
| e - Distance mounting surface to bearing center | 21 mm | ||
| J - Mounting holes distance | 92 mm | ||
| N - Mounting hole dimension | 14 mm | ||
| Z - Width over covers | 50,7 mm | ||
| C0 - Static load rating | 15,2 kN | ||
| Operating temperature max. | 100 °C |
