| Gewicht | .53184 lb | ||
| max. operating temperature (fixed use) | 260c | ||
| burst pressure (at 20c) | 2.9 mpa | ||
| applicable fluid | please refer to the applicable fluid in page 41. | ||
| straight pipe - 2 m | -- | ||
| bundle - 50 ft. (16 m) | ? | ||
| bundle - 50 m | -- | ||
| bundle - 10 m | -- | ||
| o.d.(mm) - basic diameter | +0.2?0.1 | ||
| nominal diameter | ? |
| Material | super pfa | ||
| note 2)radius (mm) | 110 | ||
| max. operating note 1)pressure (at 20c) | 0.7 mpa | ||
| Color | translucent (color of material) | ||
| bundle - 100 ft. (33 m) | ? | ||
| bundle - 100 m | -- | ||
| bundle - 20 m | -- | ||
| thickness (mm) - tolerance | ?0.1 | ||
| tubing size | ?12 x ?10 | ||

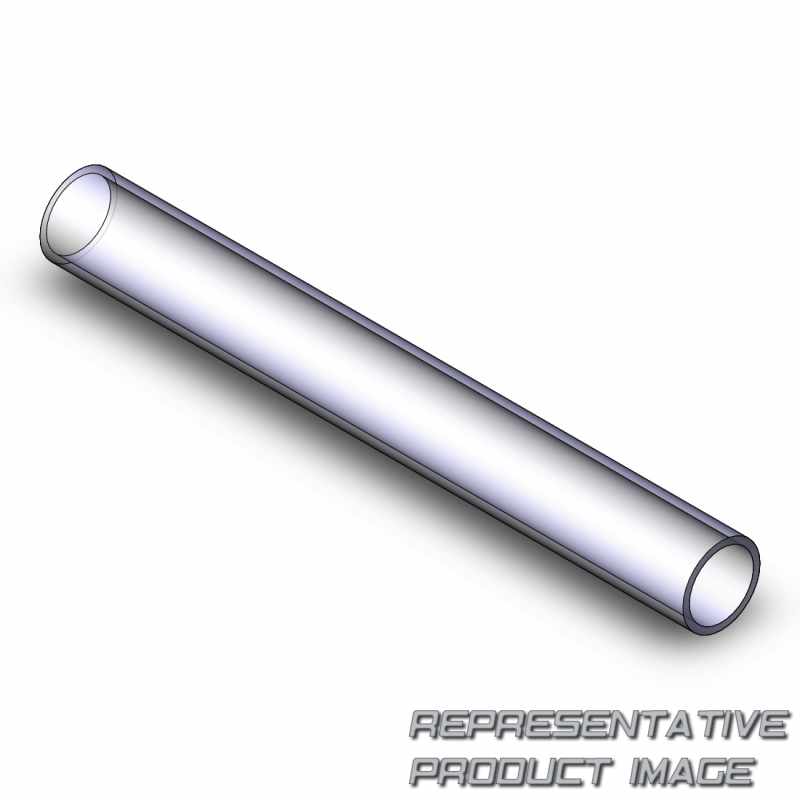

| tubing model | tl1210 |
