| Gewicht | 2.83360 lb | ||
| max. operating temperature (fixed use) | 260c | ||
| burst pressure (at 20c) | 2.0 mpa | ||
| applicable fluid | please refer to the applicable fluid in page 41. | ||
| straight pipe - 2 m | -- | ||
| bundle - 50 ft. (16 m) | -- | ||
| bundle - 50 m | -- | ||
| bundle - 10 m | ? | ||
| o.d.(mm) - basic diameter | +0.2?0.1 | ||
| nominal diameter | 1andquot; |
| Material | super pfa | ||
| note 2)radius (mm) | 290 | ||
| max. operating note 1)pressure (at 20c) | 0.5 mpa | ||
| Color | translucent (color of material) | ||
| bundle - 100 ft. (33 m) | -- | ||
| bundle - 100 m | ? | ||
| bundle - 20 m | -- | ||
| thickness (mm) - tolerance | ?0.15 | ||
| tubing size | 1andquot; x 7/8andquot; | ||

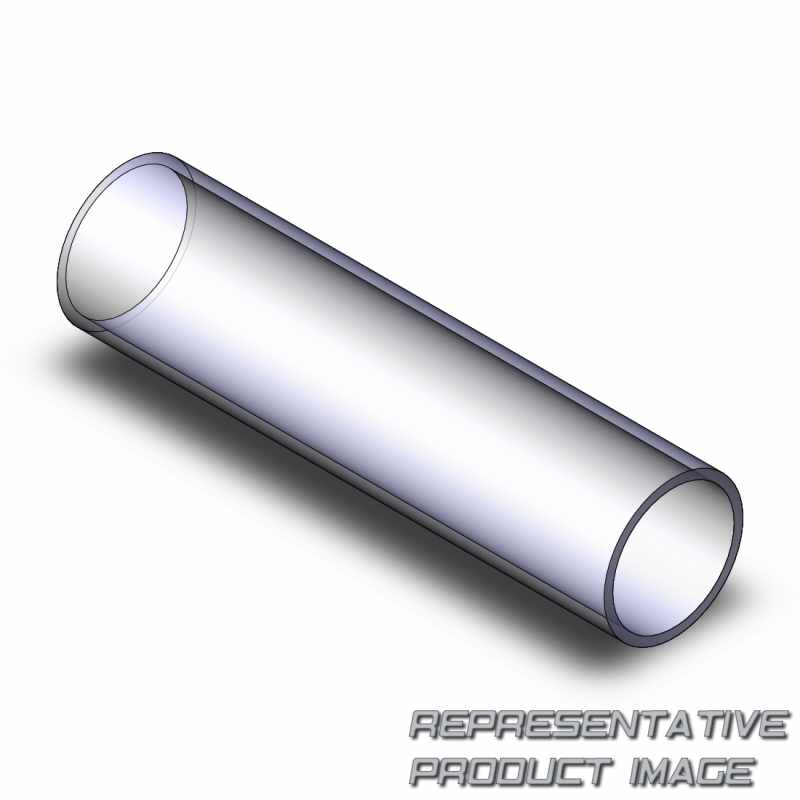

| tubing model | til25 |
