| product series | light | ||
| connection 1 type | 24° cone end | ||
| connection 2 type | 24° cone end | ||
| materials of construction | stainless steel | ||
| connection 4 tube outside diameter | 04 to 42 mm | ||
| connection 2 size | eo 24° cone end | ||
| connection 4 size | na, eo 24° cone end | ||
| maximum operating pressure | 10-80 mpa, 100-800 bar, 1450-11603 psi | ||
| Minimale Betriebstemperatur | -40 (steel); -60 (stainless steel) °c, -40 steel, -76 stainless steel °f | ||
| Anschlussart | bite type, soft seal bite type |

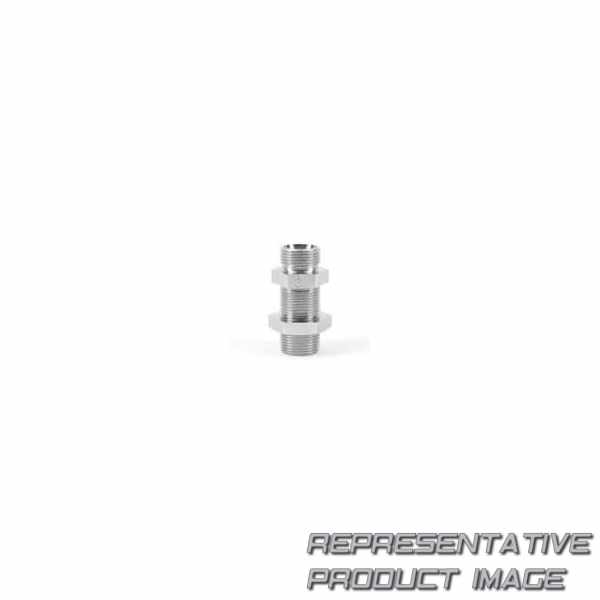

| shape | bulkhead straight | ||
| connection 1 tube outside diameter | 6 mm | ||
| connection 2 tube outside diameter | 6 mm | ||
| connection 3 tube outside diameter | 04 to 42 mm | ||
| connection 1 size | eo 24° cone end | ||
| connection 3 size | na, eo 24° cone end | ||
| tube outside diameter | 6-42 mm | ||
| Maximale Betriebstemperatur | +250 steel, +400 stainless steel °c, +482 steel, +752 stainless steel °f | ||
| Anwendung | agriculture equipment, automotive process, chemical transfer, construction equipment, fuel transfer, hydraulic, manufacturing equipment, marine, material handling, mobile equipment, oilfield, packaging, transportation | ||
| specifications met | din iso 8434 |
