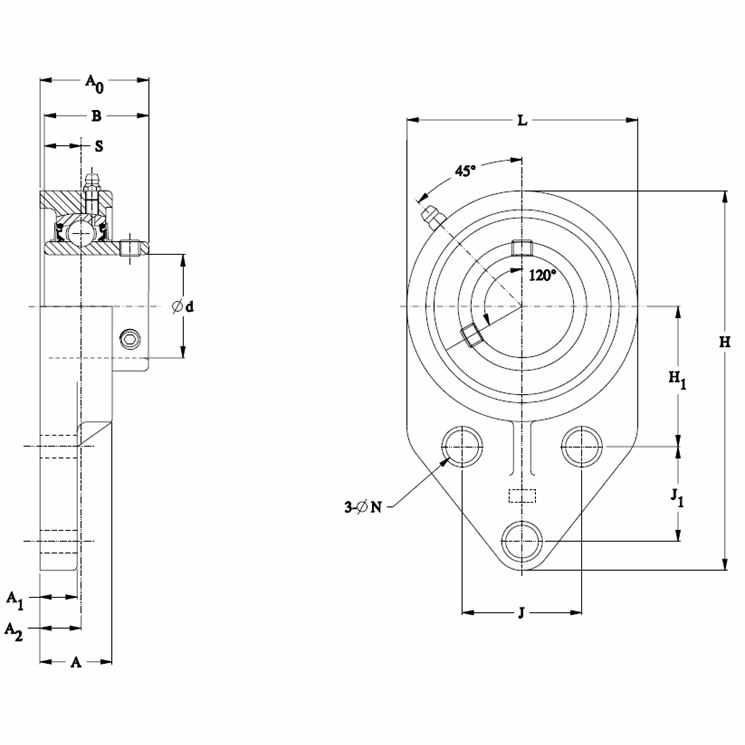

| Total Length L | 70 | mm | |
| Total Width A0 | 41,30 | mm | |
| Bolt Hole Size N | 11 | mm | |
| Housing Width A | 34,10 | mm | |
| Abmessung h1 | 46 | ||
| Center of Bearing from Bearing End S | 14,30 | mm |
| Total Height H | 121 | mm | |
| Bolt Hole Spacing J | 41,30 | mm | |
| Flange Thickness A1 | 11,40 | mm | |
| Dimension A2 | 21,50 | ||
| Dimension J1 | 28,60 | mm | |
| Inner Ring Width B | 34,10 | mm |
| Housing Construction | Three-Bolt Flange | ||
| Bearing Number | SUC205/F | ||
| Schmierausführung | Standard Food Safe Grease | ||
| Locking Style | Set Screw Locking |
| Gehäusematerial | White Thermoplastic (Polymer) | ||
| Bore Size | 25 | mm | |
| Gewicht | 0,80 | Kg | |
| Bearing Style | Ball Bearing |
