| dust protection seal | SS - With End Seal And Side Seal And Inner Seal | ||
| preload | no preload | ||

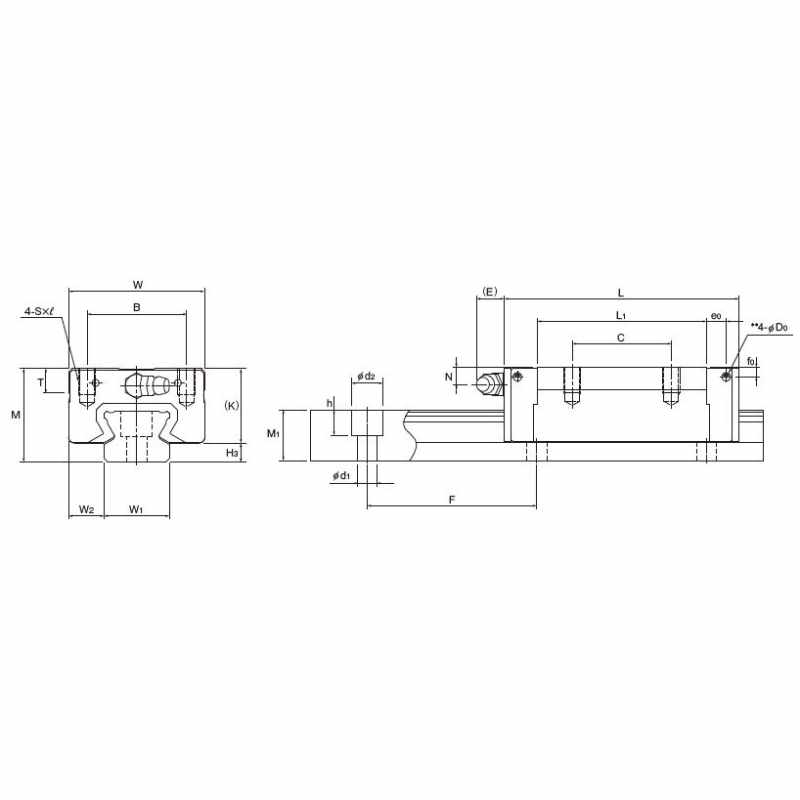

| outer dimensions - widthw - mm | 70 | ||
| block dimensions - b - mm | 50 | ||
| block dimensions - s x l - mm | m8 x 12 | ||
| rail dimensions - d1xd2xh - mm | 9x14x12 | ||
| basic load rating - radial - static rating c0 - kn | 71,60 |
| Baugröße | 35 | ||
| outer dimensions - heightm - mm | 48 | ||
| outer dimensions - lengthl - mm | 110,90 | ||
| block dimensions - c - mm | 50 | ||
| rail dimensions - pitch f - mm | 80 | ||
| basic load rating - radial - dynamic rating c - kn | 64,60 |
