FESTO SRBC
21 Produkte

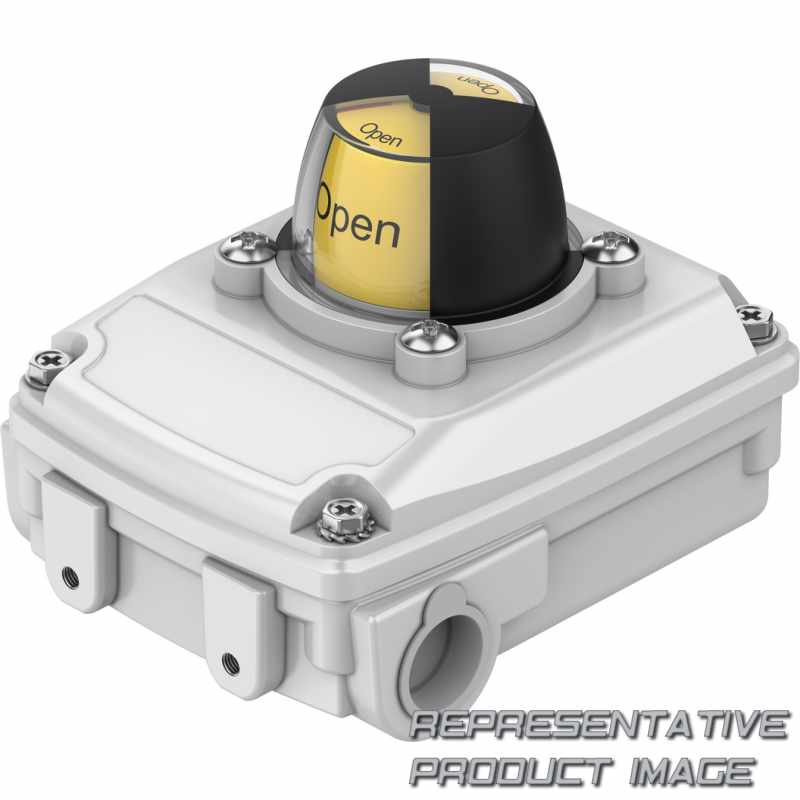

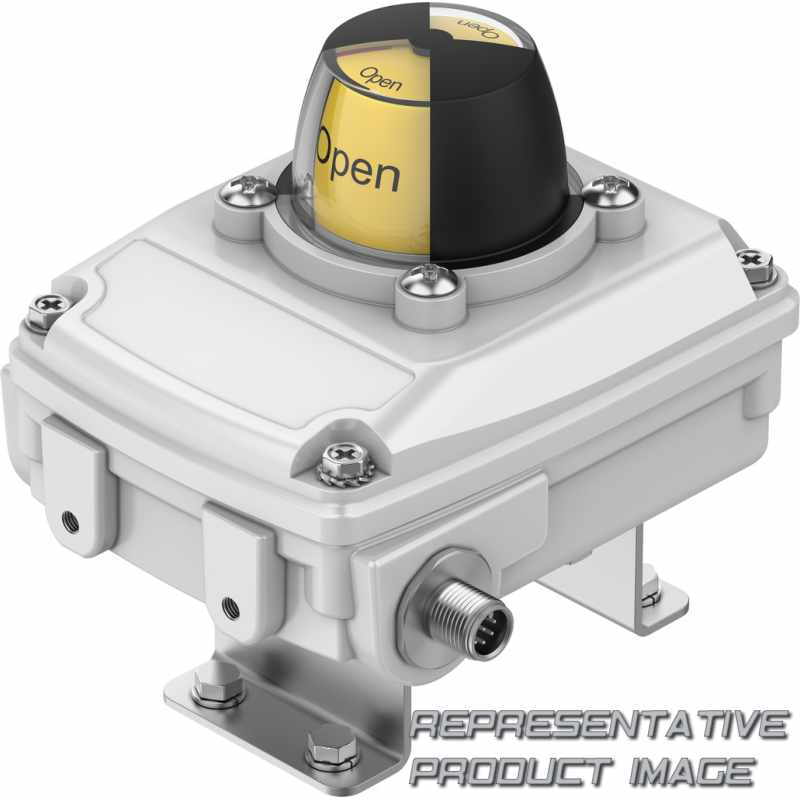

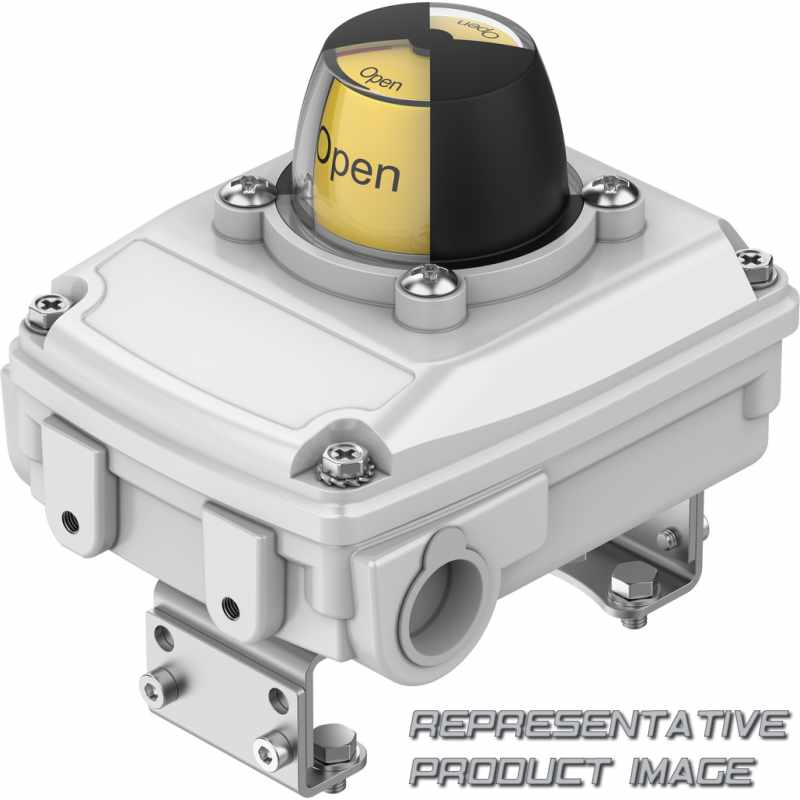

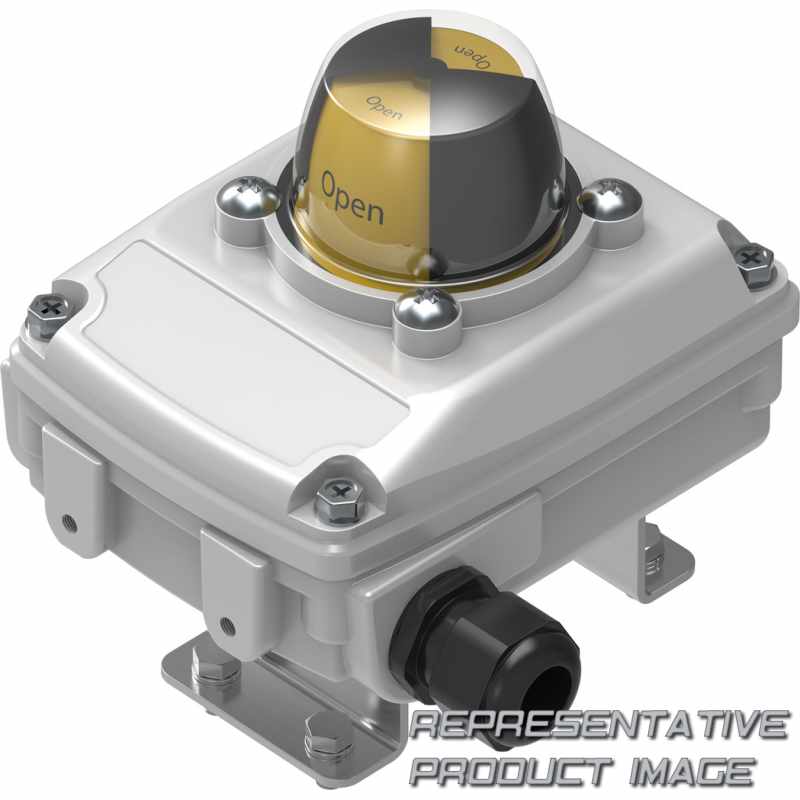

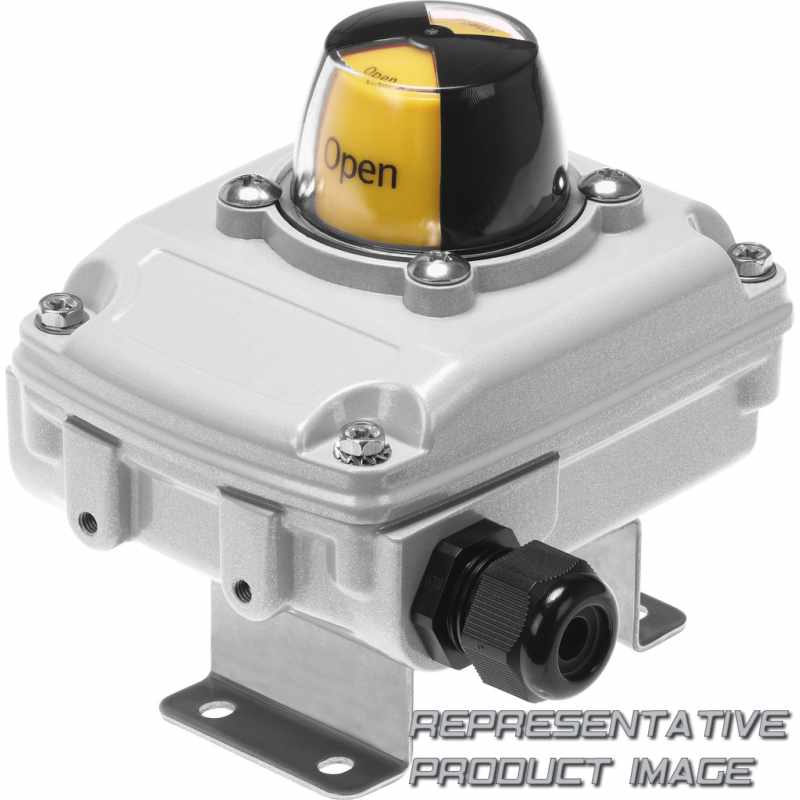

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO SRBC – Limit switch attachment. Finden Sie das passende Produkt durch Filtern mit Mechanical interface, Sensor principle, Nominal operating voltage, Electrical output 1, Elektrischer Anschluss, Cable connector und EU certification.
SRBC Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| SRBC | SRBC-C- -YR-90- - - - | Limit switch attachment |
Typcode zur Katalognummer SRBC,
SRBC-C- -YR-90- - - -
| 001 | Series |
|---|---|
| SRBC | Limit switch attachment |
| 002 | Design type |
| C | Sensor box |
| 003 | Mechanical interface |
| A3 | Mounting bridge, hole pattern 30 x 80 mm, shaft height 20 mm |
| A4 | Flexible mounting adapter |
| A5 | EN ISO 5211 / F05 |
| 004 | Display type |
| YR | Position indicator yellow/red |
| 005 | Measuring range |
| 90 | 0 ... 90° |
| 006 | Sensor principle |
| MW | Floating contact, changeover contact |
| N | Proximity sensor, inductive |
| R | With contacts (reed) |
| 007 | Nominal operating voltage |
| 1 | 24 V DC |
| 2A | 110 V AC/50-60 Hz |
| 20N | 8.2 V DC (Namur) |
| 22A | 250 V AC |
| 008 | Electrical output 1 |
|---|---|
| N | NPN |
| P | PNP |
| 1W | 1-pin toggle switch |
| 1WG | 1-pole changeover switch (gold contact) |
| ZC | 2-wire N/C contact |
| ZU | 2-wire N/O contact |
| 009 | Electrical connection |
| C2 | Screw terminal |
| M12 | Plug M12, A-coded |
| 010 | Cable connector |
| Without | |
| P20 | M20x1.5, polymer |
| 011 | EU certification |
| None | |
| EX6 | II 1GD |
