| dust protection seal | SS - With End Seal And Side Seal And Inner Seal | ||
| preload | no preload | ||

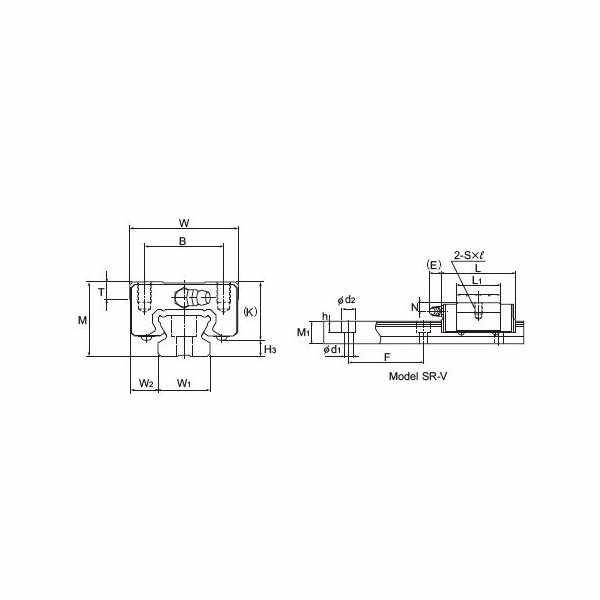

| outer dimensions - widthw - mm | 34 | ||
| block dimensions - b - mm | 26 | ||
| rail dimensions - pitch f - mm | 60 | ||
| basic load rating - radial - dynamic rating c - kn | 9,10 |
| Baugröße | 15 | ||
| outer dimensions - heightm - mm | 24 | ||
| outer dimensions - lengthl - mm | 40,40 | ||
| block dimensions - s x l - mm | m4 x 7 | ||
| rail dimensions - d1xd2xh - mm | 3.5x6x4.5 | ||
| basic load rating - radial - static rating c0 - kn | 11,70 |
