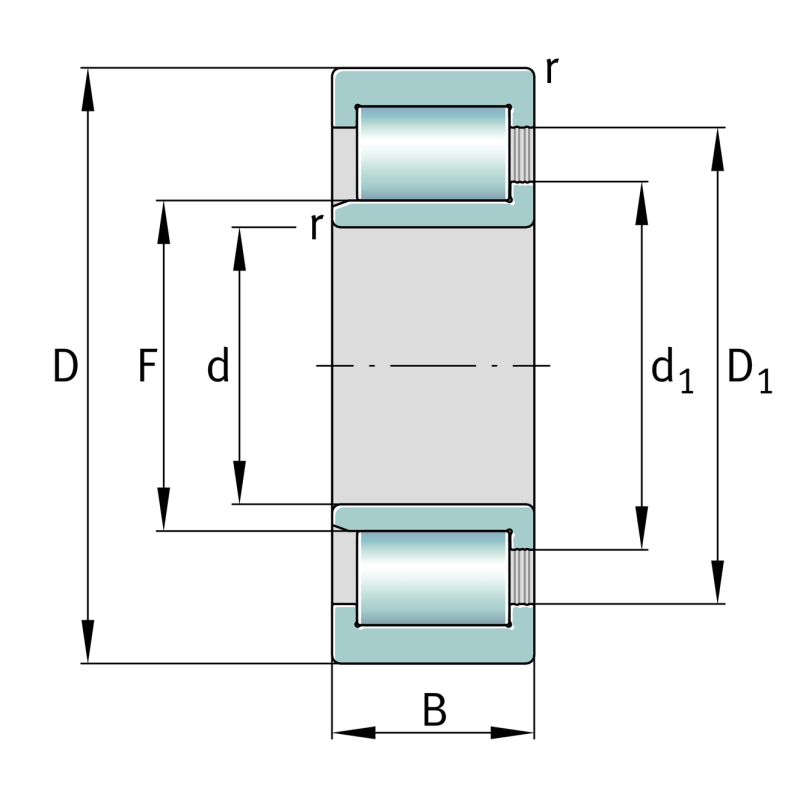

| Axial displacement | s1 | 2 | mm |
| Maximum fillet radius | ra max | 1,50 | mm |
| Minimum shaft shoulder | dc min | 57,50 | mm |
| Shoulder diameter inner ring | d1 | 57,50 | mm |
| Shoulder diameter outer ring | D1 | 75,20 | mm |
| Minimum chamfer dimension | rmin | 1,50 | mm |
| Raceway diameter inner ring | F | 51,10 | mm |
| Minimum diameter shaft shoulder | da min | 51 | mm |
| Maximum diameter of housing shoulder | Da max | 75 | mm |
| Reference speed | nϑr | 3,050 | |
| Fatigue load limit, radial | Cur | 29,000 | |
| Basic dynamic load rating, radial | Cr | 170,000 | |
| Außen-Ø | D | 90 | mm |
| Limiting speed | nG | 5,000 | |
| Basic static load rating, radial | C0r | 153,000 | |
| Breite | B | 33 | mm |
| Bore diameter | d | 40 | mm |
