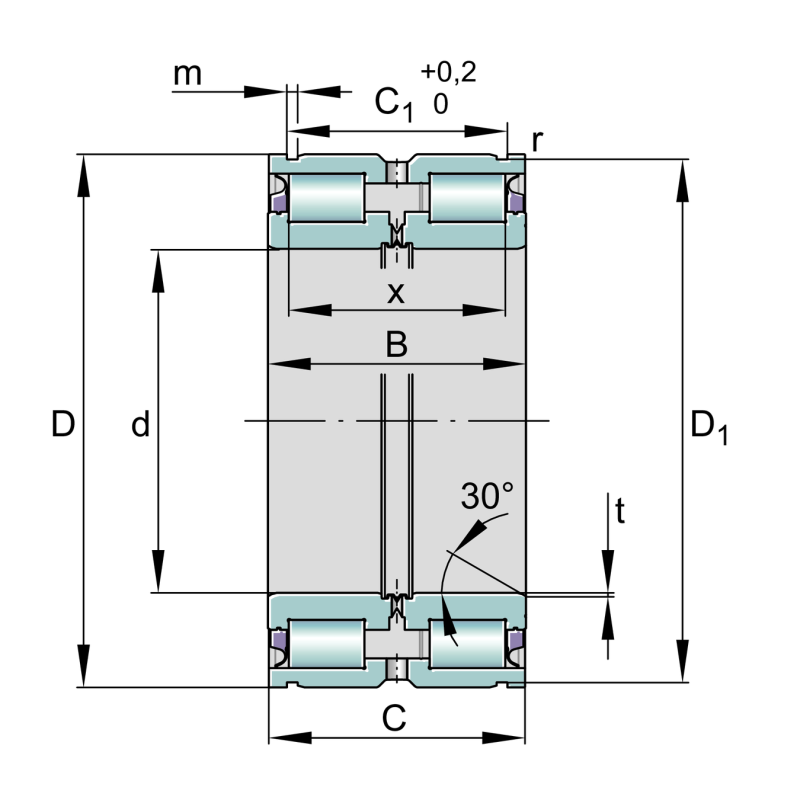

| Distance between rolling elements | X | 42 | mm |
| Minimum chamfer dimension | rmin | 0,60 | mm |
| Diameter of groove | D1 | 107,10 | mm |
| Width, outer ring | C | 53 | mm |
| Chamfer width | C2 | 1 | mm |
| Width of groove | m/2 | 4,20 | mm |
| Distance ring grooves | C1 | 48,20 | mm |
| Upper distance ring groove tolerance | 0,20 | mm | |
| Lower distance snap ring tolerance | -0,20 | mm | |
| Maximum recess radius | ra max | 0,60 | mm |
| Outside diameter of snap ring WRE | d3 | 119 | mm |
| Rib diameter inner ring | d1 | 85 | mm |
| Mounting dim for snap ring WRE (not included in delivery) Tolerance: 0/-0,2 | Ca1 | 43 | mm |
| Lower distance retaining ring tolerance | -0,20 | mm | |
| Chamfer angle | 30 | ° | |
| Minimum diameter shaft shoulder | da min | 85 | mm |
| Sealing diameter (rib) | d2 | 91 | mm |
| Mounting dim for retaining ring to DIN 471 (not incl. In delivery) Tol: 0/-0,2 | Ca2 | 40 | mm |
| Limiting speed for grease lubrication | nG Grease | 1,850 | |
| Basic static load rating, radial | C0r | 275,000 | |
| Breite | B | 54 | mm |
| Bore diameter | d | 70 | mm |
| Fatigue load limit, radial | Cur | 37,000 | |
| Basic dynamic load rating, radial | Cr | 175,000 | |
| Außen-Ø | D | 110 | mm |
