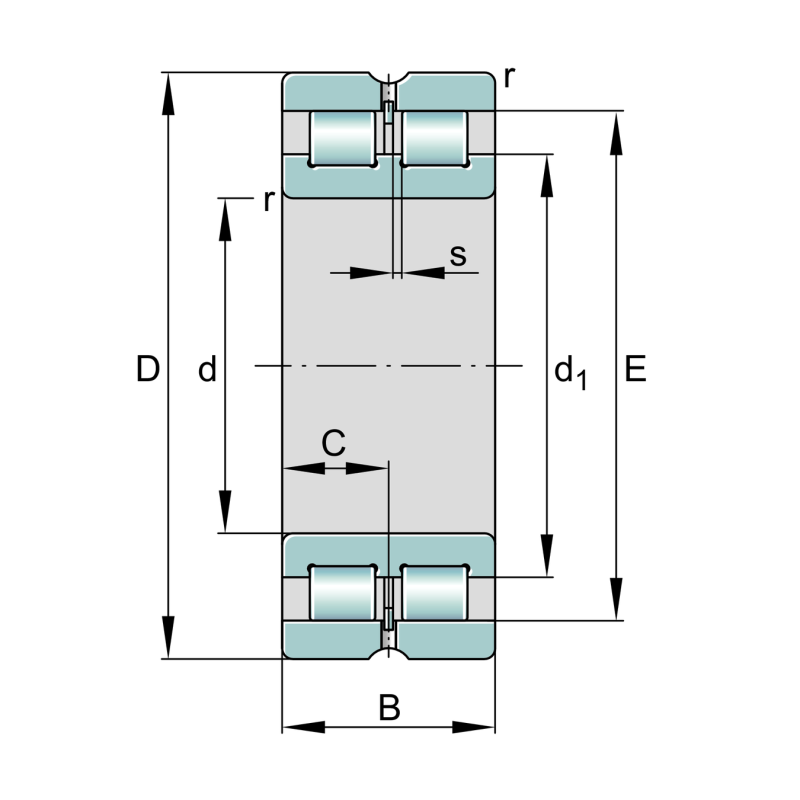

| Bore diameter | d | 70 | mm |
| Breite | B | 30 | mm |
| Basic static load rating, radial | C0r | 185,000 | |
| Limiting speed | nG | 3,900 |
| Außen-Ø | D | 100 | mm |
| Basic dynamic load rating, radial | Cr | 106,000 | |
| Fatigue load limit, radial | Cur | 27,500 | |
| Reference speed | nϑr | 2,330 |

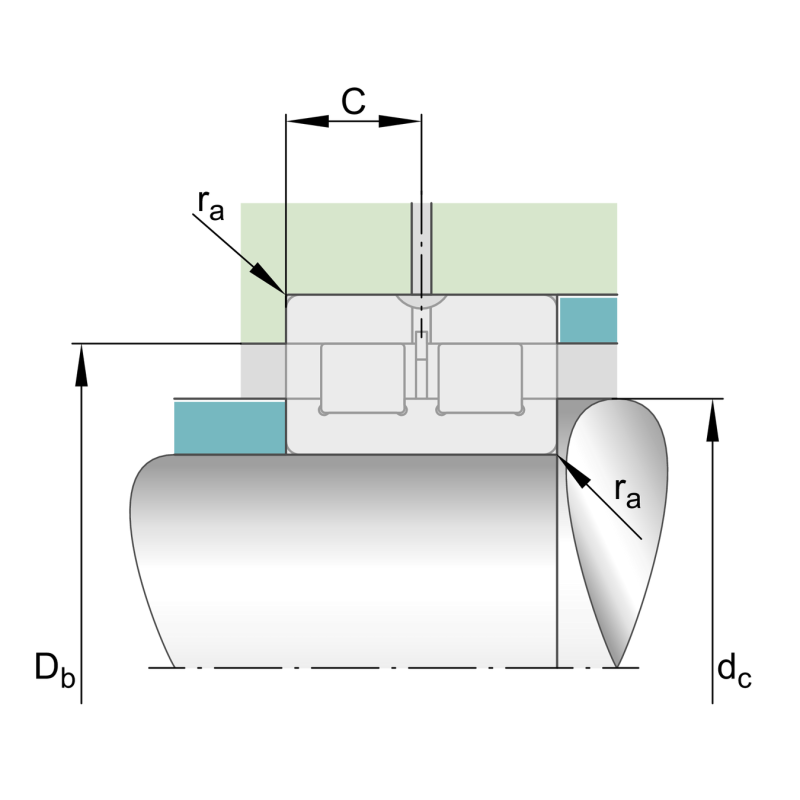

| Minimum shaft shoulder | dc min | 82,50 | mm |
| Maximum recess radius | ra max | 1 | mm |
| Minimum diameter shaft shoulder | da min | 82,50 | mm |
| Minimum chamfer dimension | rmin | 1 | mm |
| Distance to lubrication hole | Ca | 15 | mm |
| Raceway diameter outer ring | E | 91,87 | mm |
| Axial displacement | s1 | 1 | mm |
| Maximum rib diameter inner ring | d1 | 82,50 | mm |
