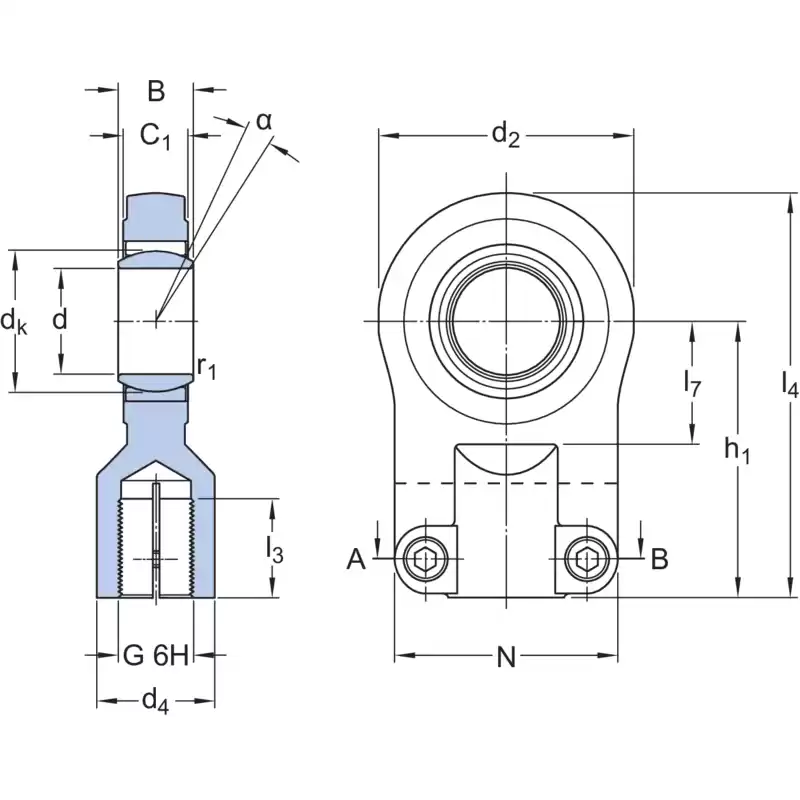

| Chamfer dimension bore | r1 | min.0.3 | |
| Width shank | N | max.40 | |
| Length (height) housing | l4 | max.62 | |
| Housing diameter shank | d3 | max.17 | |
| Angle of tilt | α | 10 | ° |
| Width head | C1 | max.8 | |
| Width Inner ring | B | 10 | mm |
| Bore diameter | d | 12 | mm |
| Thickness shank base for clamping bolts | N1 | max.13 | |
| Distance shank chamfer - centre rod end eye | l7 | min.16 | |
| Length threat | l3 | min.15 | |
| Raceway diameter inner ring | F | 18 | mm |
| Height shank end face - centre rod end eye | h1 | 42 | mm |
| Gewinde | M 10x1.25 | ||
| Diameter head | d2 | max.36 |
