FESTO SFAH
45 Produkte

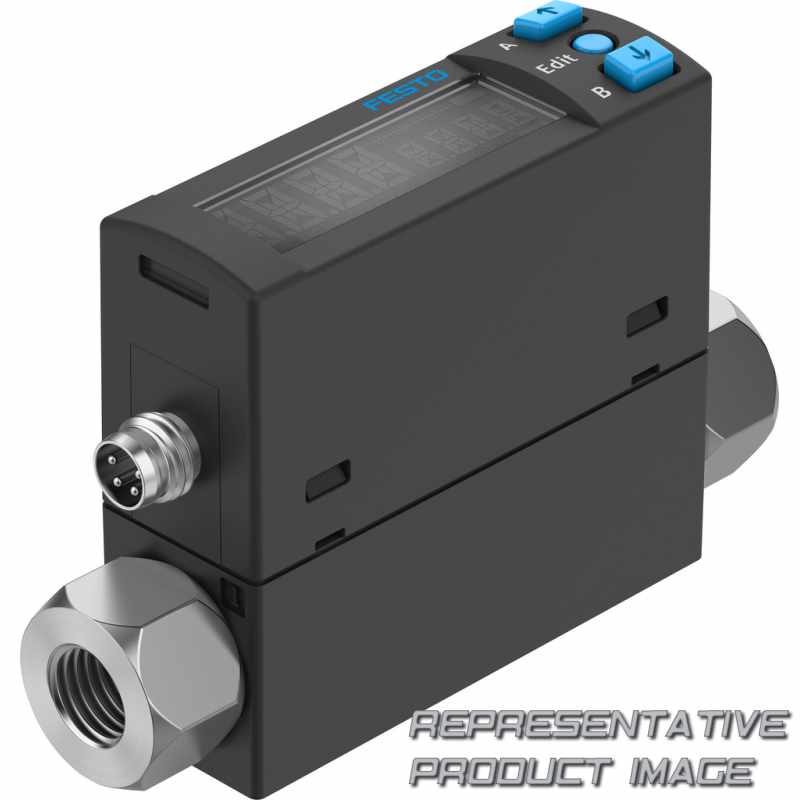

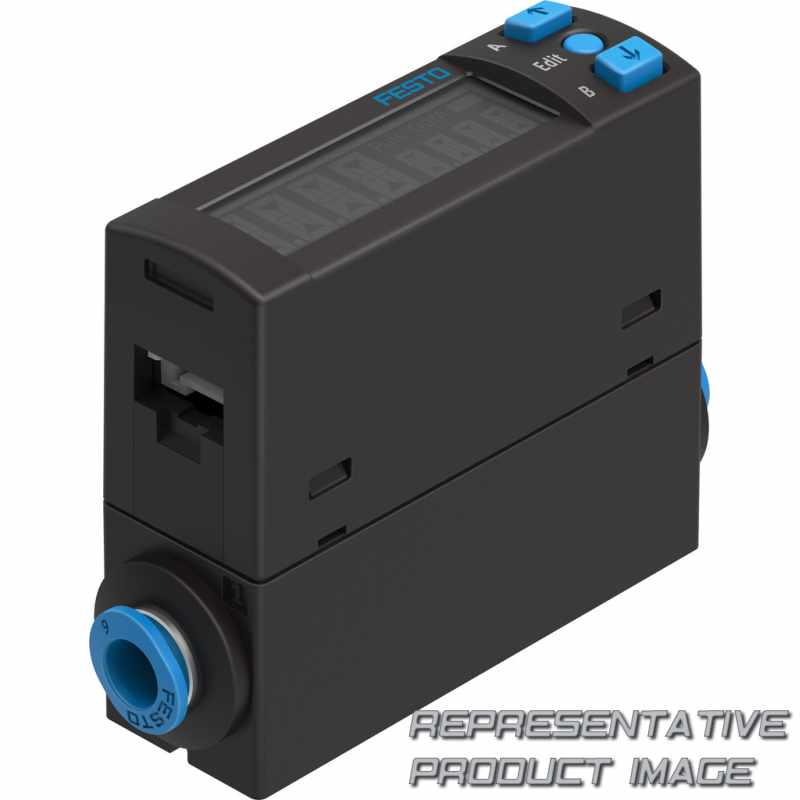

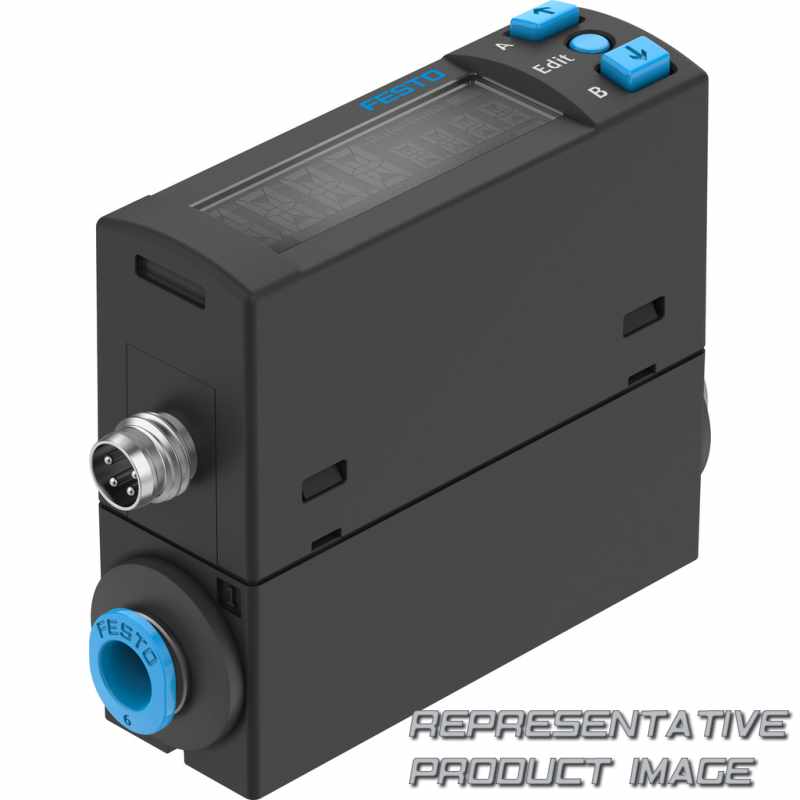

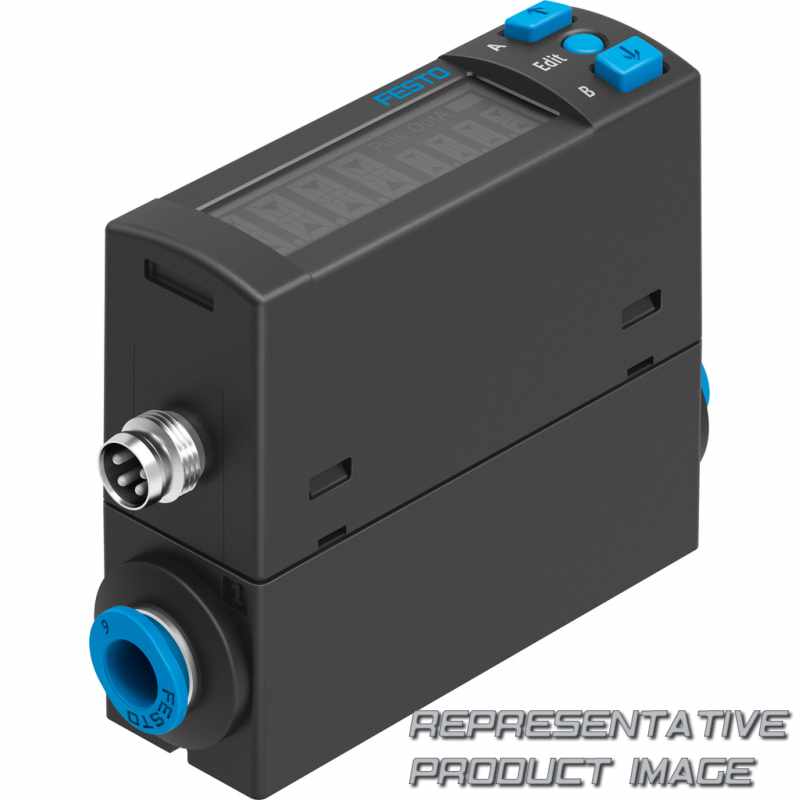

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO SFAH – Flow sensor. Finden Sie das passende Produkt durch Filtern mit Flow measuring range, Flow rate input, Pneumatischer Anschluss, Thread type, Outlet orientation und Elektrischer Anschluss.
SFAH Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| SFAH | SFAH- - - - -PNLK-PNVBA- | Flow sensor |
Typcode zur Katalognummer SFAH,
SFAH- - - - -PNLK-PNVBA-
| 001 | Series |
|---|---|
| SFAH | Flow sensor |
| 002 | Flow measuring range |
| 0.1 | Max. 0.1 l/min |
| 0.5 | Max. 0.5 l/min |
| 1 | Max. 1 l/min |
| 5 | Max. 5 l/min |
| 10 | Max. 10 l/min |
| 50 | Max. 50 l/min |
| 100 | Max. 100 l/min |
| 200 | Max. 200 l/min |
| 003 | Flow rate input |
| B | Bidirectional |
| U | Unidirectional |
| 004 | Pneumatic connection |
| G18 | G1/8 |
| G14 | G1/4 |
| Q4 | Push-in connector 4 mm |
| Q6 | Push-in connector 6 mm |
| Q8 | Push-in connector 8 mm |
| 005 | Thread type |
| None | |
| F | Female |
| 006 | Outlet orientation |
| S | Straight |
| AR | Angled, adjustable |
| 007 | Electrical output 1 |
|---|---|
| PNLK | PNP/NPN/IO-Link |
| 008 | Electrical output 2 |
| PNVBA | PNP or NPN or 0 ... 10 V or 1 ... 5 V or 4 ... 20 mA |
| 009 | Electrical connection |
| L1 | Plug type L1 |
| M8 | Plug M8, A-coded |
| 010 | Mounting accessories |
| None | |
| H | H-rail mounting |
| FP | Front panel mounting kit |
| W | Wall mounting |
| 011 | Electrical accessories |
| None | |
| 2.5A | Angled socket, cable 2.5 m |
| 2.5S | Straight socket, cable 2.5 m |
| 5A | Angled socket, cable 5 m |
| 5S | Straight socket, cable 5 m |
| 012 | Protective devices |
| None | |
| G | Protective hood |
| 013 | Certifi cate |
| None | |
| T | Test report |
