| Brand | SNR | ||

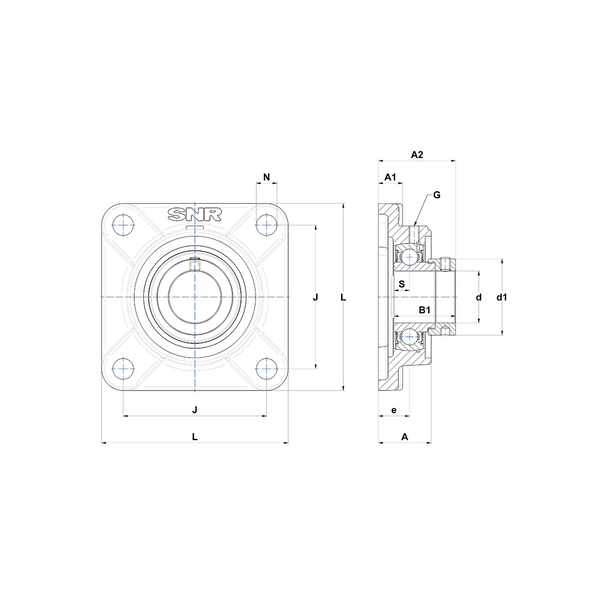

| A1 - Housing foot height / flange height | 20 mm | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 53,1 mm | ||
| e - Distance mounting surface to bearing center | 29 mm | ||
| J - Mounting holes distance | 143 mm | ||
| N - Mounting hole dimension | 19 mm | ||
| C - Dynamic load rating | 41 kN | ||
| Operating temperature min. | -20 °C | ||
| Recommended tightening torque for set screw | 18,7 N-m |
| A - Housing height | 48 mm | ||
| A2 - Total height from mounting surface | 71,1 mm | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 84,2 mm | ||
| G - Grease fitting | M6x1 | ||
| L - Housing width / diameter | 175 mm | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 11 mm | ||
| C0 - Static load rating | 31,5 kN | ||
| Operating temperature max. | 100 °C |
