| body | stainless steel aisi 316 l | ||
| bspp | g1/8 | ||
| Medium | compressed air | ||
| operating pressure pressure bar min to max range | -0.9 ... 20 bar | ||
| operating temperature f temperature fahrenheit min to max range | 5 ... 374 °f | ||
| oring | fkm | ||
| Baureihe | pneufit s | ||
| thread | g1/8 | ||
| thread sealant | fkm | ||
| vacuum rating pressure mmhg | 750 mm hg |
| body material | stainless steel aisi 316 l | ||
| data performance shelf life | 10 years | ||
| od tube length millimetre | 4 mm | ||
| operating pressure psi pressure psi min to max range | -14.5 ... 290 psi | ||
| operating temperature temperature celsius min to max range | -15 ... 190 °c | ||
| Anschlussgröße | g1/8 | ||

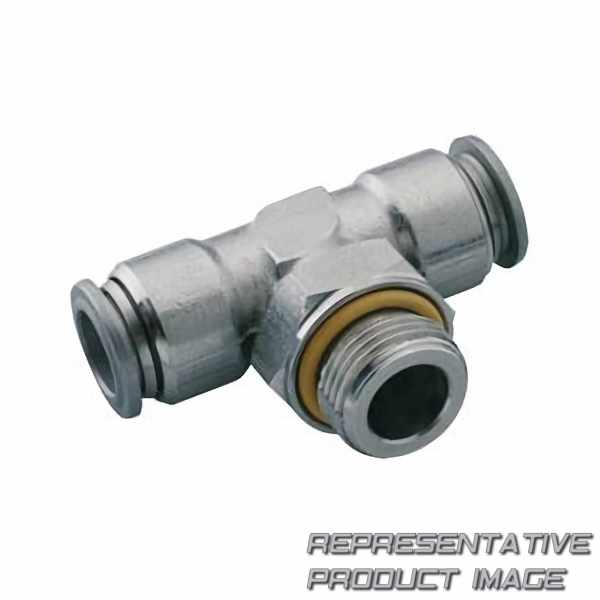

| shape | tee | ||
| thread form | iso g | ||
| tube sizes length millimetre | 12 mm |
