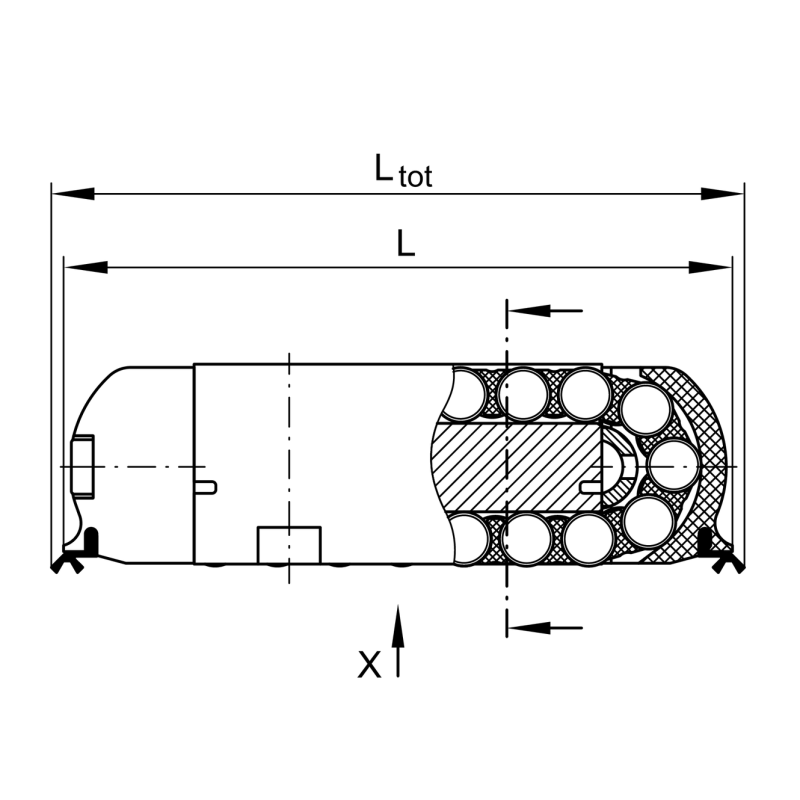

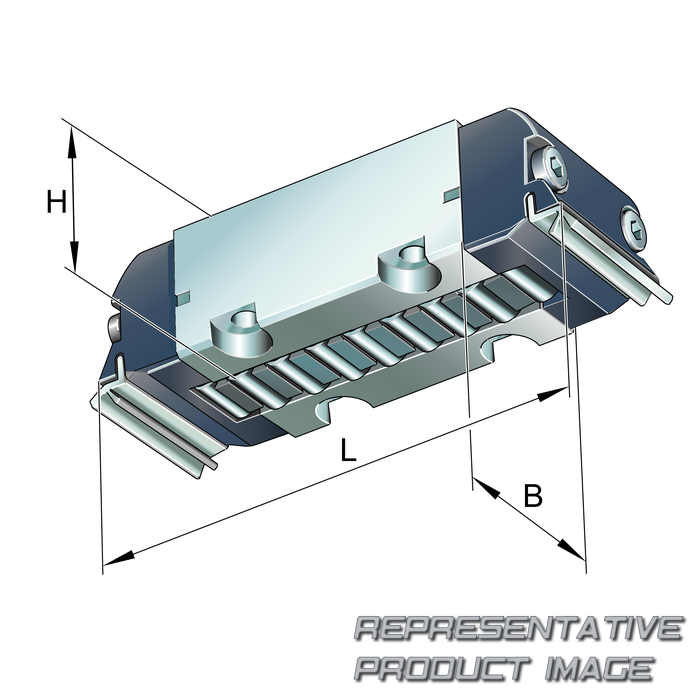

| total length | Ltot | 74 | mm |

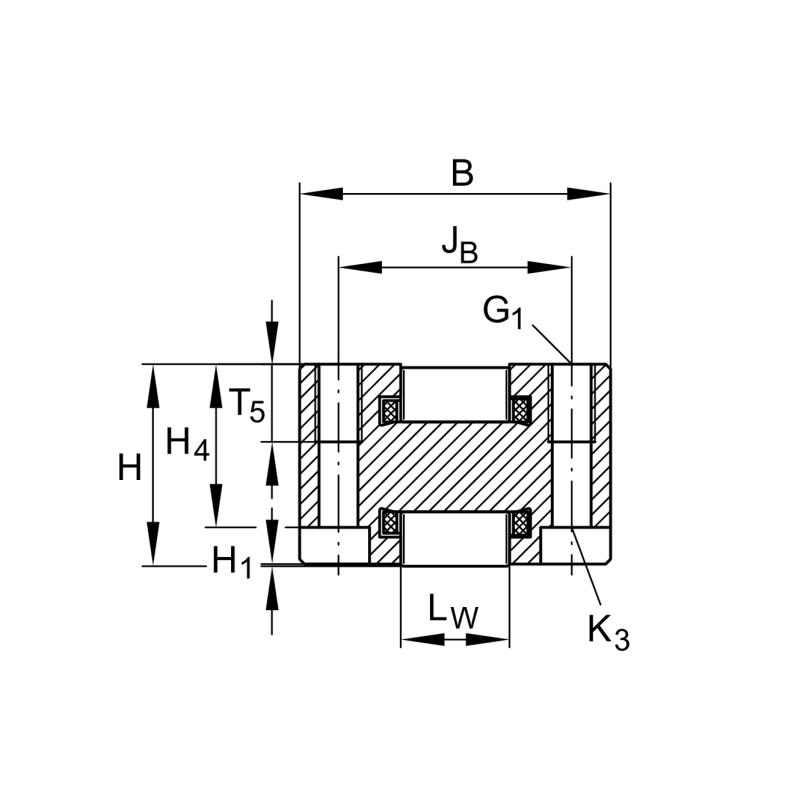

| Höhe | T | 19 | mm |
| Basic static load rating | C0 | 33,000 |
| Breite | B | 27 | mm |
| Basic dynamic load rating | C | 42,000 |

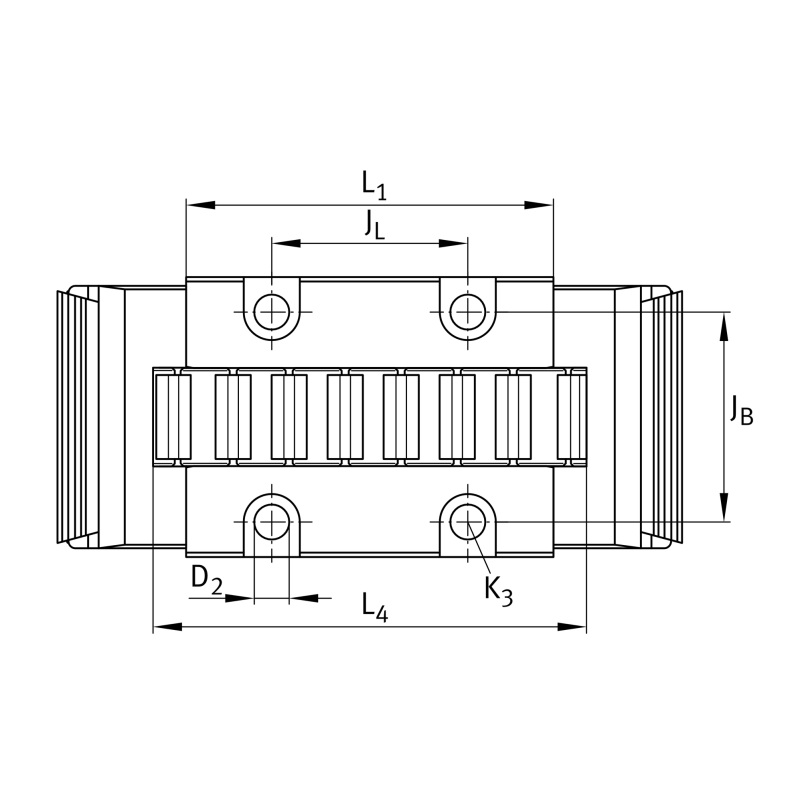

| Mounting dimension | JB | 25,50 | mm |
| fixing screws top (DIN ISO 4762-12.9) | G1 | M4 | |
| fixing screws below (DIN ISO 4762-12.9) | K3 | M3 |
| minimum support length | L4 | 50 | mm |
| Tightening torrque fixing screws | G1 MA | 3,69 | Nm |
| Tightening torque fixing screws | K3 MA max | 1,33 | Nm |
