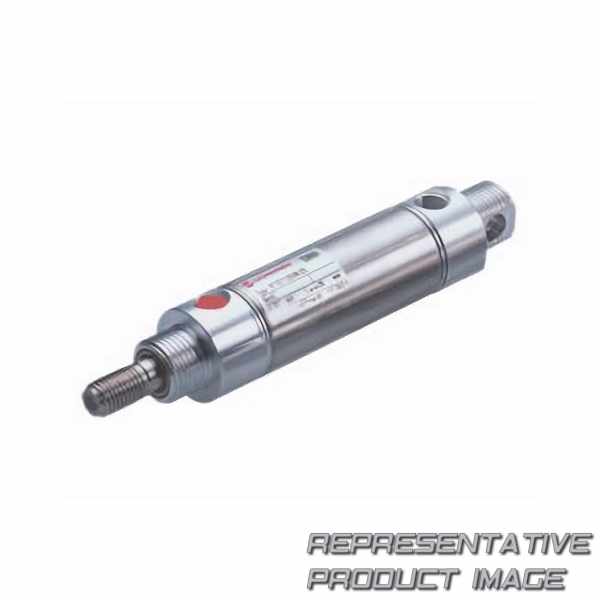

NORGREN RT/57120/MC/10 roundline single acting cylinder

Name: RT/57120/MC/10 NORGREN
Brand: NORGREN
SKU: 777444-de-eur
Price: 67.12 EUR
Availability: SoldOut

67,12 € ~~91,25 €~~ -26%

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Hub	10 mm
max. Druck	2 ... 10 bar

Außendurchmesser	20 mm

barrel		stainless steel (austenitic)
Medium		compressed air
non magnetic or magnetic		magnetic
operating pressure psi pressure psi min to max range		29 ... 145 psi
operating temperature temperature celsius min to max range		-10 ... 80 °c
piston rod diameter metric length millimetre		8 mm
port orientation mounting style		central rear port, flat end
product style		roundline
rod type		standard
sprung in or sprung out		sprung in
theoretical force force newton		161 n

cylinder diameter metric length millimetre		20 mm
minimum operating pressure pressure bar		2 bar
operating pressure pressure bar min to max range		2 ... 10 bar
operating temperature f temperature fahrenheit min to max range		14 ... 176 °f
operation		single acting
piston rod material		stainless steel (martensitic)
Anschlussgröße		rc1/8
range		rt/57100/m
Baureihe		roundline
stroke length metric length millimetre		10 mm
wiper		polyurethane
