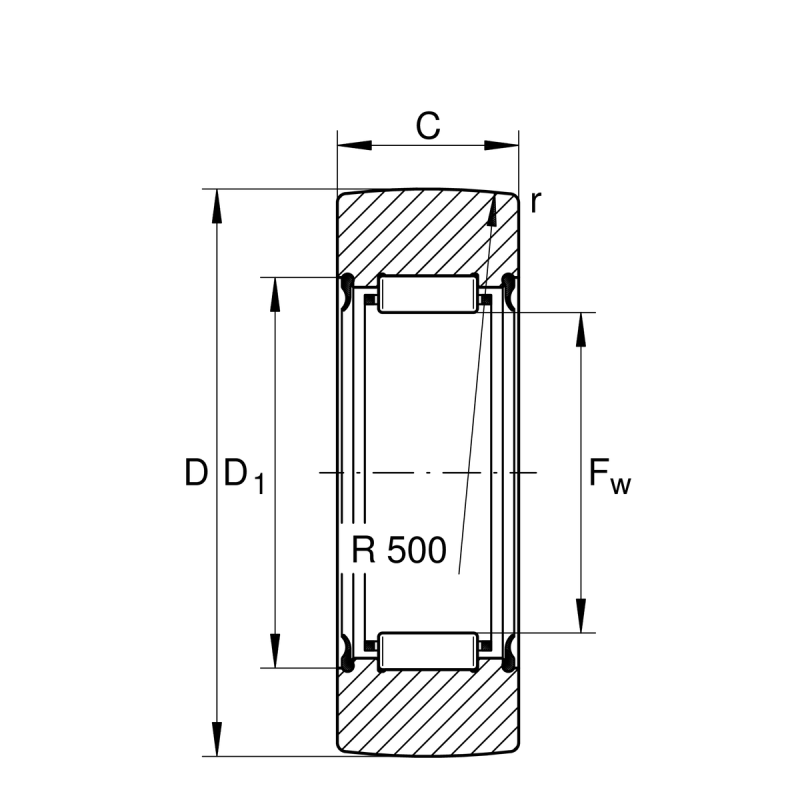

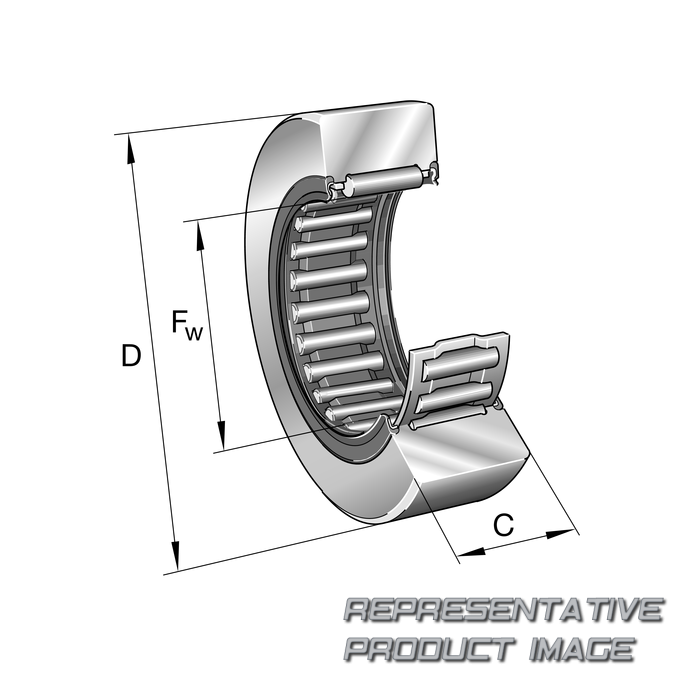

| Außen-Ø | D | 35 | mm |
| Width, outer ring | B | 13,80 | mm |
| Basic static load rating, radial | C0r | 9,500 | |
| Speed on permanent grease lubrication | nD G | 3,400 |
| Under roller diameter | Fw | 20 | mm |
| Basic dynamic load rating, radial | Cr | 6,700 | |
| Fatigue load limit, radial | Cur | 1,400 |
| Minimum mounting dimension | D1 min | 26 | mm |
| Radius of outer ring outside profile | R | 500 | mm |
| Minimum chamfer dimension | rmin | 0,60 | mm |
