| stroke max. | 675 mm | ||
| weight 0 mm stroke | 0.1 kg | ||
| cushioning energy | 0.6 j | ||
| Kolbenstangengewinde | m6 | ||
| working pressure max | 10 bar | ||
| max. ambient temperature | 80 °c | ||
| extracting piston force | 109 n | ||
| pressure for determining piston forces | 6,3 bar | ||

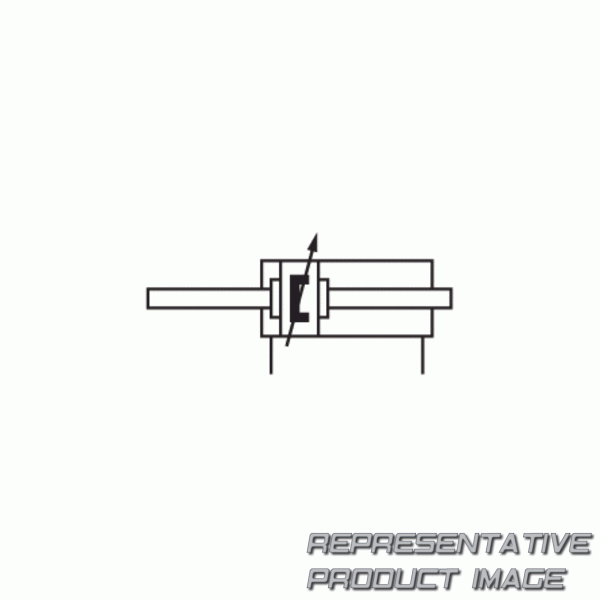

| piston rod | through | ||
| environmental requirements | industry standard, atex optional | ||
| Dämpfung | pneumatic adjustable cushioning | ||
| Hub | 125 mm | ||
| Standards | iso 6432 |
| weight +10 mm stroke | 0.063 kg | ||
| Gewicht | 0.0973 kg | ||
| Dämpfungslänge | 9 mm | ||
| Anschlüsse | m5 | ||
| working pressure min. | 1 bar | ||
| min. ambient temperature | -25 °c | ||
| retracting piston force | 109 n | ||
| scraper | standard industrial scraper | ||
| certificates | atex optional | ||
| magnetic piston | piston with magnet | ||
| Funktionsprinzip | double-acting | ||
| piston Ø | 16 mm |
