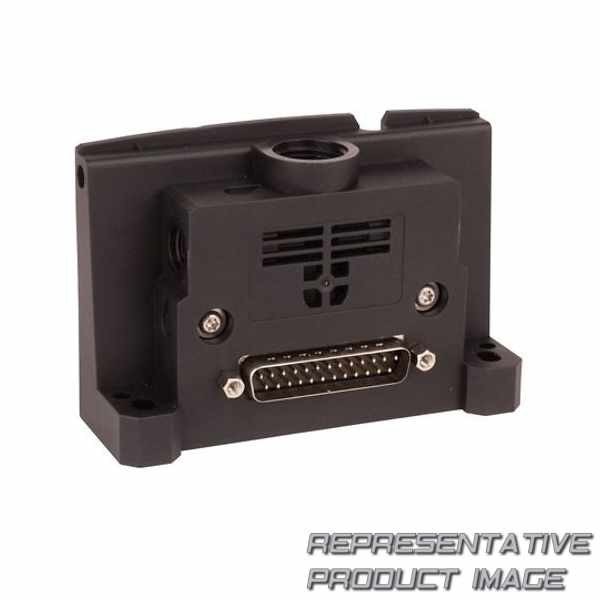

| compressed air connection 1 | g 3/8 | ||
| pilot connection | g 1/8 | ||
| delivery unit | 5 piece | ||
| working pressure min. | 0 bar | ||
| min. ambient temperature | 5 °c | ||
| min. medium temperature | 5 °c | ||
| electr. connection | d-sub plug, 25-pin, on the side | ||
| mounting screw | hexalobular socket (torx) iso 10664-10 | ||
| Gehäusematerial | polyoxymethylene, polyamide |
| port 3 / 5 | g 3/8 | ||
| pilot control exhaust | g 1/8 | ||
| Typ | multipole | ||
| working pressure max | 8 bar | ||
| max. ambient temperature | 50 °c | ||
| max. medium temperature | 50 °c | ||
| Schutzklasse | ip50 | ||
| tightening torque for mounting screws | 0.9 nm | ||
| screws material | stainless steel |
