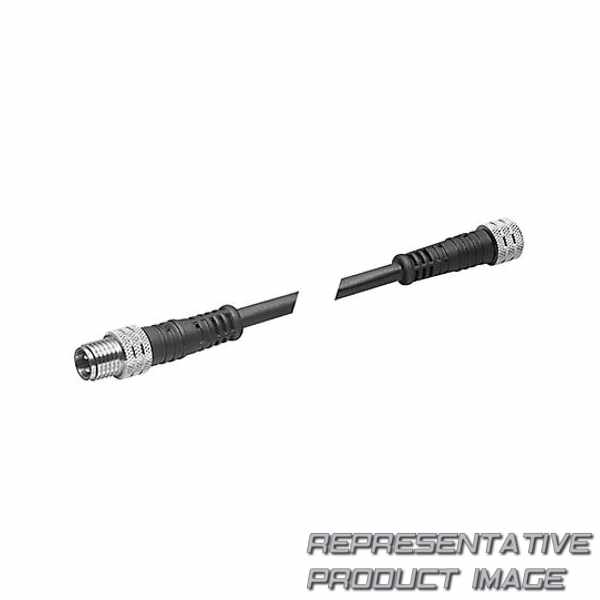

| Typ | round plug connectors | ||
| operating voltage ac max. | 30 v dc | ||
| electrical connection 1, type | socket | ||
| electrical connection 1, number of poles | 4-pin | ||
| electrical connection 2, type | plug | ||
| electrical connection 2, number of poles | 4-pin | ||
| cable exit | straight | ||
| number of wires | 4 | ||
| Kabellänge | 2 m | ||
| bending radius min. | 44 mm | ||
| min. ambient temperature | -25 °c | ||
| max. current | 4 a |
| cable | with cable | ||
| operating voltage dc, max. | 30 v ac | ||
| electrical connection 1, thread size | m8x1 | ||
| electrical connection 1, coding | a-coded | ||
| electrical connection 2, thread size | m8x1 | ||
| electrical connection 2, coding | a-coded | ||
| cable exit angle | 180° | ||
| Shielding | unshielded | ||
| suitable for dynamic laying | suitable for dynamic laying | ||
| Schutzklasse | ip68 | ||
| max. ambient temperature | 80 °c |
