| working pressure min. | 1.5 bar | ||
| pressure gauge | with integrated pressure gauge | ||

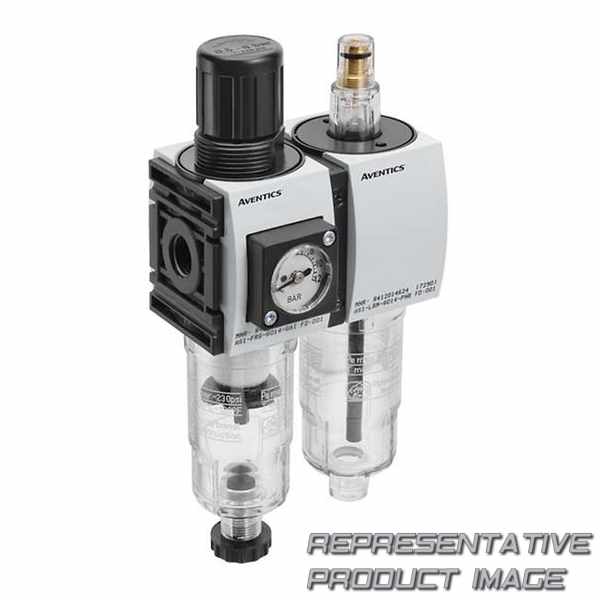

| Komponenten | filter pressure regulator, lubricator | ||
| port | g 1/4 | ||
| filter porosity | 5 µm | ||
| min. ambient temperature | -10 °c | ||
| air supply | left | ||
| regulation range max. | 8 bar | ||
| Typ | can be assembled into blocks | ||
| mounting orientation | vertical | ||
| regulator function | with relieving air exhaust | ||
| filter reservoir volume | 16 cm³ |
| working pressure max | 12 bar | ||
| parts | air preparation units | ||
| reservoir | reservoir, polycarbonate, without protective guard | ||
| nominal flow qn | 700 l/min | ||
| Kondensatablass | semi-automatic, open without pressure | ||
| max. ambient temperature | 50 °c | ||
| regulation range min. | 0.5 bar | ||
| lock type | not lockable | ||
| pressure supply | single | ||
| regulator type | diaphragm-type pressure regulator | ||
| filter element | exchangeable | ||
| max. achievable compressed air class acc. to iso 8573-1:2010 | 6 : 7 : - |
