| activation | electrically | ||
| Ausführung | nc | ||
| working pressure min. | 2 bar | ||
| Dichtprinzip | soft seal | ||
| Anschlussart | pipe connection | ||
| can be assembled into blocks | can be assembled into blocks | ||
| Typ | poppet valve | ||
| max. ambient temperature | 50 °c | ||
| max. particle size | 25 µm | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| air supply | left | ||
| nominal flow qn 2 to 3 | 380 l/min | ||
| Gewicht | 0.1964 kg |
| nominal flow qn | 2000 l/min | ||
| compressed air connection | g 1/4 | ||
| working pressure max | 12 bar | ||
| pilot | internal | ||

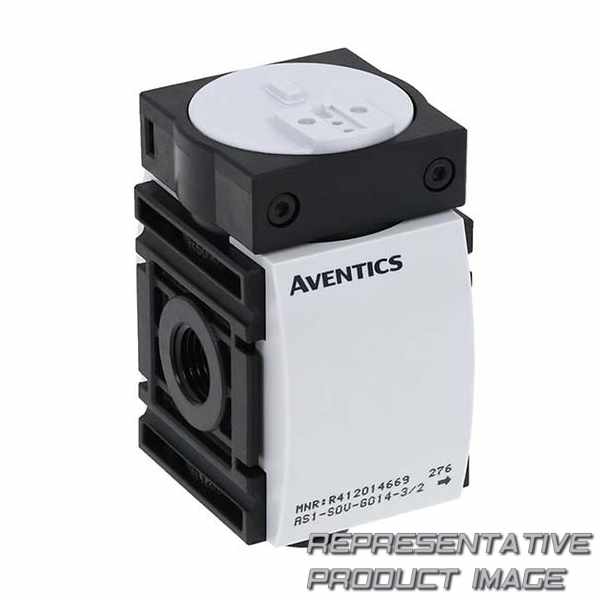

| parts | 3/2-directional valve | ||
| basic valve with electrical connector | basic valve without pilot valve | ||
| min. ambient temperature | -10 °c | ||
| Medium | compressed air, neutral gases | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| compressed air connection, exhaust | g 1/4 | ||
| nominal flow qn 1 to 2 | 2000 l/min | ||
| protection class with connection | ip65 |
