| material protective guard | steel | ||
| material threaded bushing | die cast zinc | ||
| material front plate | acrylonitrile butadiene styrene | ||
| Typ | can be assembled into blocks | ||
| Gewicht | 0.45 kg | ||
| filter element | exchangeable | ||
| max. achievable compressed air class acc. to iso 8573-1:2010 | 1 : - : 2 | ||
| max. ambient temperature | 60 °c | ||
| working pressure max | 16 bar | ||
| Kondensatablass | semi-automatic, open without pressure | ||
| filter porosity | 0.01 µm | ||
| reservoir | reservoir, polycarbonate, with metal protective guard |
| material reservoir | polycarbonate | ||
| seal material | acrylonitrile butadiene rubber | ||
| Gehäusematerial | die cast zinc | ||
| mounting orientation | vertical | ||
| recommended pre-filtering | 0.3 µm | ||
| filter reservoir volume | 10 cm³ | ||
| Medium | compressed air, neutral gases | ||
| min. ambient temperature | -10 °c | ||
| working pressure min. | 1.5 bar | ||
| nominal flow qn | 280 l/min | ||
| port | g 1/4 | ||

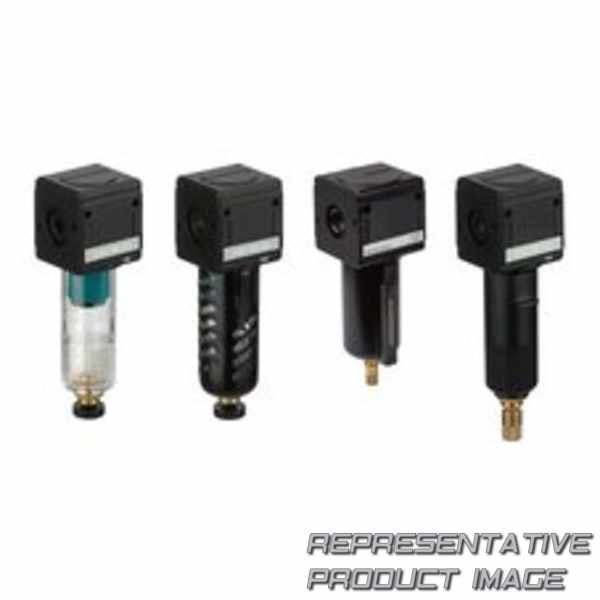

| parts | microfilter |
