| Note | the e11 locking is delivered without a key (see accessories for keys r961403407)., the rear pressure gauge connection on the pressure regulator is closed with a blanking plug, the front connection is open. depending on the customer application, a second blanking plug may be necessary. please order separately (see accessories). | ||
| pressure gauge | without pressure gauge | ||
| port | g 1/4 | ||
| regulation range min. | 0.5 bar | ||
| working pressure min. | 0.5 bar | ||
| min. ambient temperature | -10 °c | ||
| air supply | left | ||
| regulator function | with relieving air exhaust | ||
| lock type | with e11 locking | ||
| Medium | compressed air, neutral gases | ||
| Gehäusematerial | polyamide | ||
| seal material | acrylonitrile butadiene rubber |

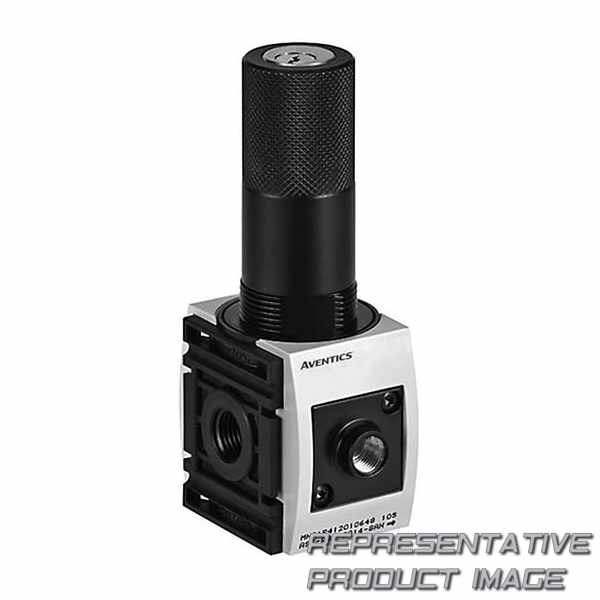

| parts | pressure regulator | ||
| mounting orientation | any | ||
| nominal flow qn | 1000 l/min | ||
| regulation range max. | 10 bar | ||
| working pressure max | 12 bar | ||
| max. ambient temperature | 50 °c | ||
| activation | manual | ||
| regulator type | can be assembled into blocks | ||
| max. pressure gauge Ø in blocked state | 40 mm | ||
| Gewicht | 0.206 kg | ||
| material front plate | acrylonitrile butadiene styrene |
