| scraper material | polyurethane | ||
| material stop | polyoxymethylene | ||
| material cylinder tube | steel | ||
| mounting | clamping flange | ||
| return spring force min. | 15 n | ||
| effective mass me min. | 440 kg | ||
| min. ambient temperature | -20 °c | ||
| Dämpfung | self-compensating | ||
| max. energy absorption/stroke | 220 nm | ||
| Mounting thread | m25x1,5 |
| material clamping flange | steel | ||
| Werkstoff Kolbenstange | stainless steel | ||
| Gewicht | 0.37 kg | ||
| return spring force max. | 31 n | ||
| effective mass me max. | 2050 kg | ||
| max. ambient temperature | 80 °c | ||
| Medium | oil | ||
| max. energy absorption/hour | 105600 nm | ||
| Hub | 25 mm | ||

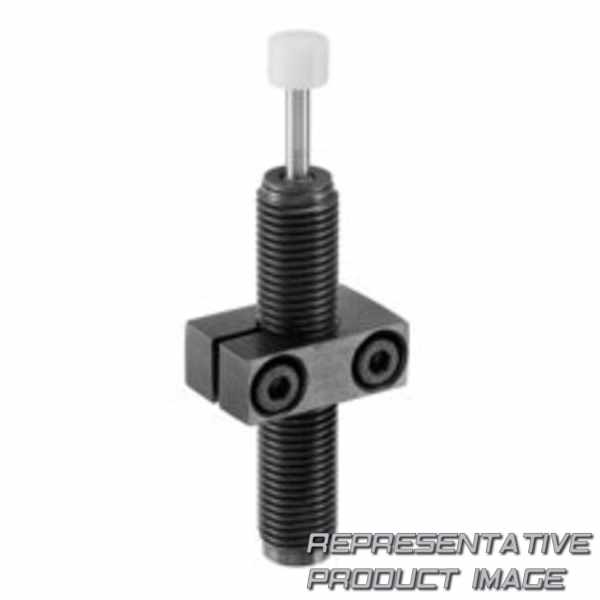

| Typ | sa1-mc |
