| material reservoir | polycarbonate | ||
| material front plate | acrylonitrile butadiene styrene | ||
| Funktion | can be assembled into blocks | ||
| electrical level indicator | with internal query | ||
| type of filling | manual oil filling | ||
| max. ambient temperature | 60 °c | ||
| working pressure max | 16 bar | ||
| mounting orientation | vertical | ||
| compressed air connection | g 1/2 | ||

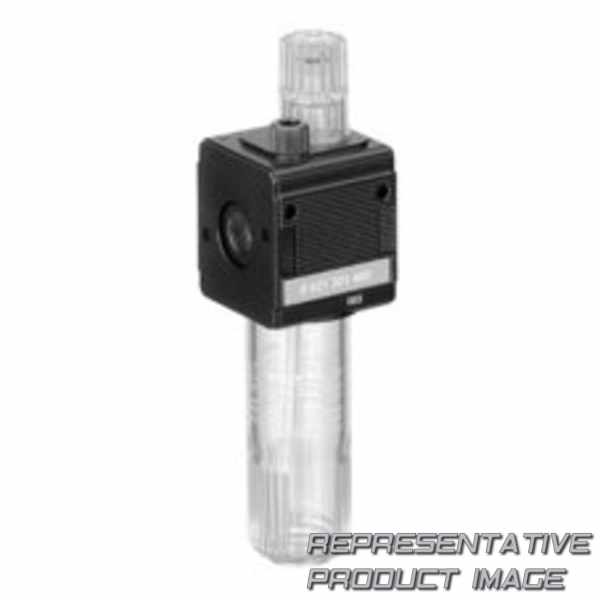

| parts | lubricator |
| seal material | acrylonitrile butadiene rubber | ||
| Gehäusematerial | die cast zinc | ||
| oil dosing at 1000 l/min | 10-20 drops | ||
| lubricator reservoir volume | 125 cm³ | ||
| Medium | compressed air, neutral gases | ||
| min. ambient temperature | -10 °c | ||
| working pressure min. | 0.5 bar | ||
| nominal flow qn | 4700 l/min | ||
| reservoir | reservoir, polycarbonate, without protective guard |
