| activation | pneumatically | ||
| Ausführung | pneumatic control, t-design | ||
| nozzle Ø | 0.7 mm | ||
| working pressure max | 6 bar | ||
| max. ambient temperature | 60 °c | ||
| max. medium temperature | 60 °c | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| max. particle size | 5 µm | ||
| vacuum connection+ | m5 | ||
| air consumption at p.opt. | 25 l/min | ||
| sound pressure level intake effect | 65 db | ||
| Gehäusematerial | polyamide fiber-glass reinforced |

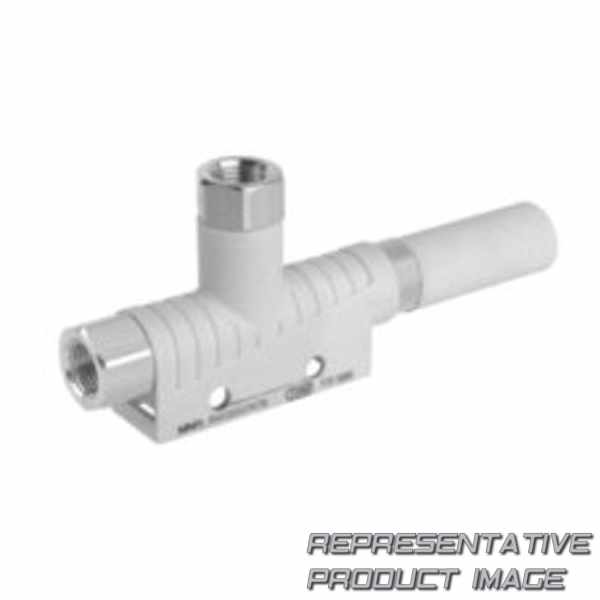

| Typ | ejector | ||
| with silencer | with silencer | ||
| working pressure min. | 3 bar | ||
| min. ambient temperature | 0 °c | ||
| min. medium temperature | 0 °c | ||
| Medium | compressed air | ||
| oil content of compressed air max. | 1 mg/m³ | ||
| compressed air connection | m5 | ||
| max. suction capacity | 16 l/min | ||
| max. vacuum level at p.opt | 85 % | ||
| Gewicht | 0.008 kg | ||
| seal material | acrylonitrile butadiene rubber |
