| release valve | release valve | ||
| sound pressure level intake effect | 78 db | ||
| air consumption at p.opt. | 320 l/min | ||
| vacuum connection+ | Ø 10 | ||
| max. particle size | 5 µm | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| max. medium temperature | 50 °c | ||
| max. ambient temperature | 50 °c | ||
| working pressure max | 6 bar | ||
| vacuum switch | electronic, non-adjustable | ||
| with silencer | with silencer | ||

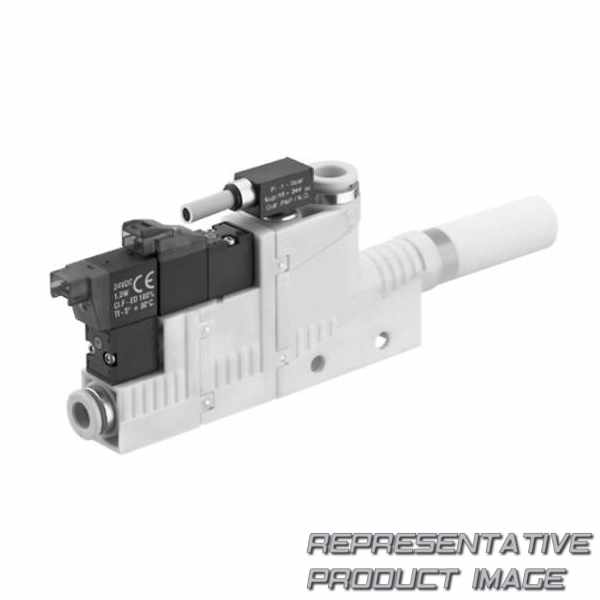

| Typ | ejector |
| protection against overpressure (max.) | 5 bar | ||
| max. vacuum level at p.opt | 84 % | ||
| max. suction capacity | 223 l/min | ||
| compressed air connection | Ø 8 | ||
| oil content of compressed air max. | 1 mg/m³ | ||
| Medium | compressed air | ||
| min. medium temperature | 0 °c | ||
| min. ambient temperature | 0 °c | ||
| working pressure min. | 3 bar | ||
| nozzle Ø | 2.5 mm | ||
| Ausführung | electrical control, t-design | ||
| activation | electrically |
