| material threaded bushing | die cast zinc | ||
| material front plate | acrylonitrile butadiene styrene | ||
| Gewicht | 0.32 kg | ||
| nominal flow 1 ▶ 5 | 2250 l/min | ||
| nominal flow 1 ▶ 3 | 10300 l/min | ||
| Medium | compressed air, neutral gases | ||
| min. ambient temperature | -10 °c | ||
| working pressure min. | 0 bar | ||

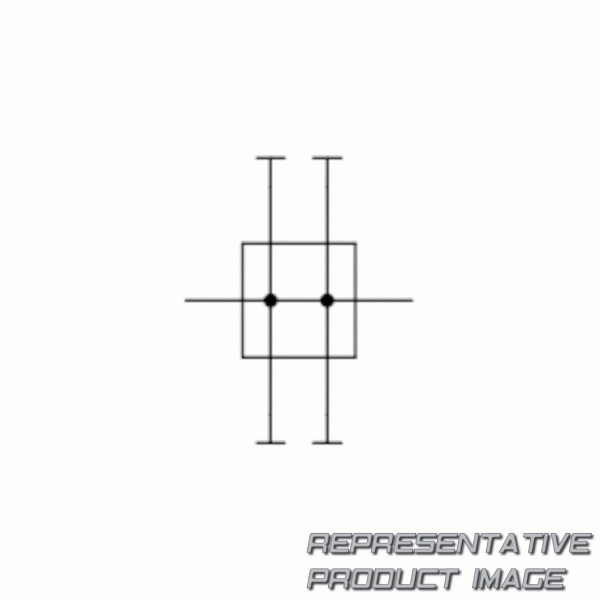

| Ausführung | distributor 4x | ||
| port | g 1/2 |
| seal material | acrylonitrile butadiene rubber | ||
| Gehäusematerial | polyamide | ||
| nominal flow 1 ▶ 6 | 2300 l/min | ||
| nominal flow qn 1 to 4 | 2300 l/min | ||
| nominal flow qn 1 to 2 | 10300 l/min | ||
| max. ambient temperature | 50 °c | ||
| working pressure max | 16 bar | ||
| mounting orientation | any | ||
| Typ | can be assembled into blocks | ||

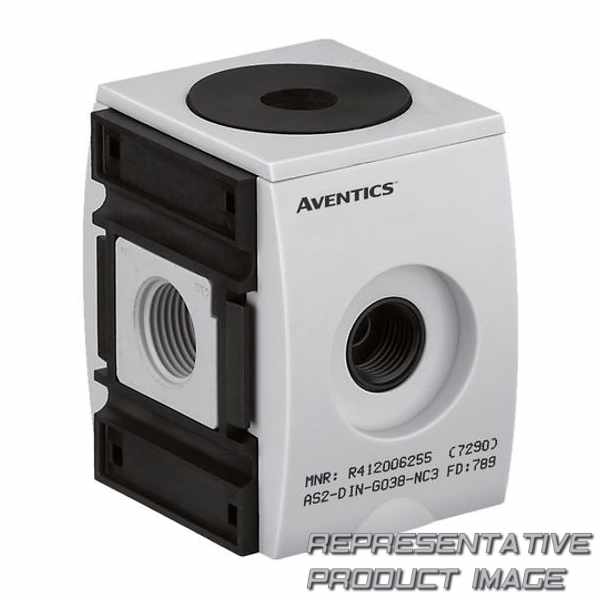

| parts | distributor |
