| activation | pneumatically | ||
| nominal flow qn | 1900 l/min | ||
| working pressure min. | 1 bar | ||
| Anschlussart | pipe connection | ||
| Typ | poppet valve | ||
| min. ambient temperature | 0 °c | ||
| Medium | compressed air, neutral gases | ||
| compressed air connection pilot exhaust | g 1/8 | ||
| Gewicht | 0.314 kg | ||
| seal material | acrylonitrile butadiene rubber | ||
| material threaded bushing | die cast zinc |

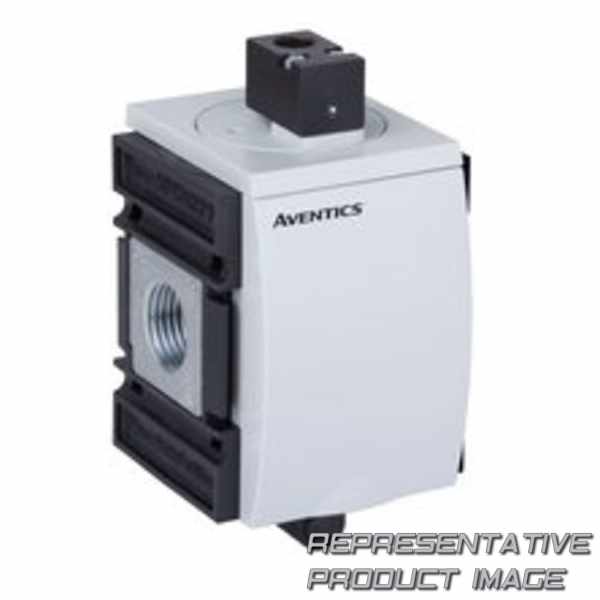

| parts | filling valve | ||
| compressed air connection | g 1/4 | ||
| working pressure max | 16 bar | ||
| Dichtprinzip | soft seal | ||
| can be assembled into blocks | can be assembled into blocks | ||
| max. ambient temperature | 50 °c | ||
| max. particle size | 40 µm | ||
| nominal flow qn 1 to 2 | 1900 l/min | ||
| Gehäusematerial | polyamide | ||
| material, front cover | acrylonitrile butadiene styrene |
