| Werkstoff Lösering | polyamide | ||
| Gehäusematerial | aluminum | ||
| delivery unit | 2 piece | ||
| max. medium temperature | 80 °c | ||
| max. ambient temperature | 80 °c | ||
| working pressure max | 16 bar | ||
| nominal flow qn 1 to 2 | 1800 l/min | ||

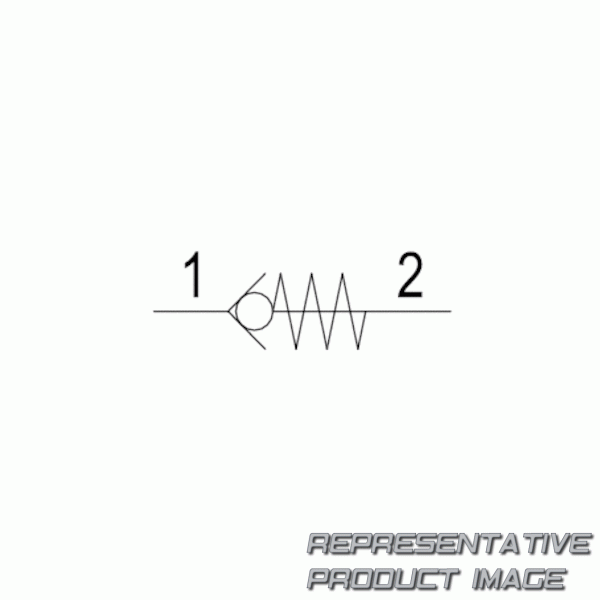

| Typ | poppet valve | ||
| compressed air connection type 1 | push-in fitting |
| seal material | acrylonitrile butadiene rubber | ||
| Gewicht | 0.018 kg | ||
| Medium | compressed air | ||
| min. medium temperature | -20 °c | ||
| min. ambient temperature | -20 °c | ||
| working pressure min. | -1 bar | ||
| compressed air connection 2 | ø 10 | ||
| compressed air connection type 2 | push-in fitting | ||
| compressed air connection 1 | ø 10 |
