| Gehäusematerial | polyamide | ||
| pointer color | black | ||
| secondary scale unit (inside) | psi | ||
| main scale unit (outside) | bar | ||
| max. particle size | 50 µm | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| max. ambient temperature | 80 °c | ||
| working pressure max | 10 bar | ||
| display range max. | 10 bar | ||
| range of application max. | 10 bar | ||
| scale value | 1 | ||
| compressed air connection | ø 6 |
| Gewicht | 0.02 kg | ||
| secondary scale color (inside) | red | ||
| main scale color (outside) | black | ||
| background color | white | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| Medium | compressed air | ||
| min. ambient temperature | -15 °c | ||
| working pressure min. | 0 bar | ||
| display range min. | 0 bar | ||
| range of application min. | 0 bar | ||
| nominal diameter | 28 mm | ||

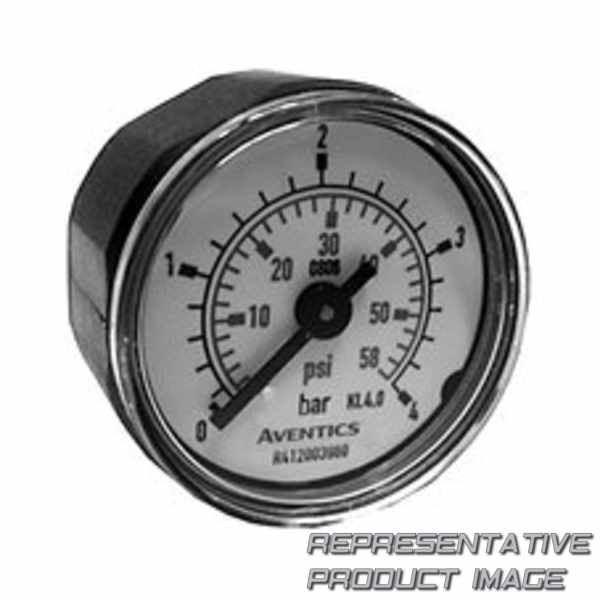

| pressure gauge version | bourdon tube pressure gauge, back port |
