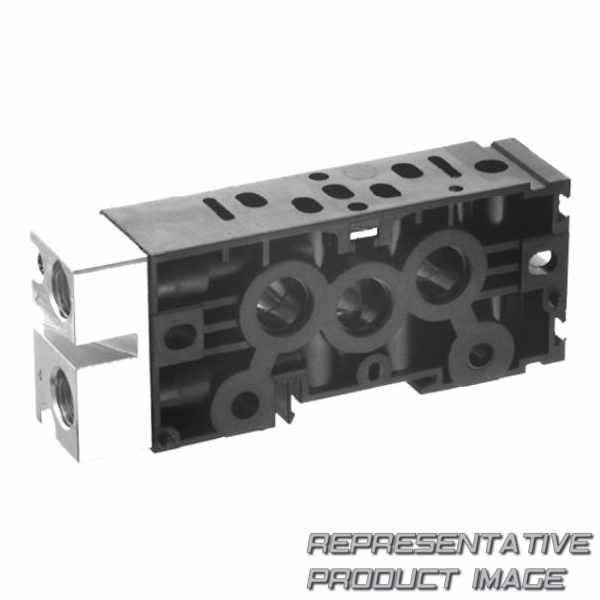

AVENTICS R412004384

Name: R412004384 AVENTICS
Brand: AVENTICS
SKU: 754810-de-eur
Price: 55.56 EUR
Availability: SoldOut

CD01, G1/4

55,56 €

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

max. Druck	16 bar
Dichtung	acrylonitrile butadiene rubber

Gewicht	165g

Typ		base plate
compressed air connection 2 / 4		g 1/4
exhaust (3,5)		with directional exhaust (3/5)
frame size		26 mm
working pressure min.		-0.95 bar
min. ambient temperature		-25 °c
min. medium temperature		-25 °c
Medium		compressed air
Rastermaß		27 mm
tightening torque for mounting screws		4 nm
Material base plate		aluminum, polyamide fiber-glass reinforced

direction of pneumatic port (2,4)		on the side
exhaust type		ports separated
pilot control exhaust		with collective pilot air exhaust
Standards		iso 15407-1
working pressure max		16 bar
max. ambient temperature		70 °c
max. medium temperature		70 °c
Max. number of valve positions		1
mounting screw		with hexagon socket
Gewicht		0.165 kg
seal material		acrylonitrile butadiene rubber
