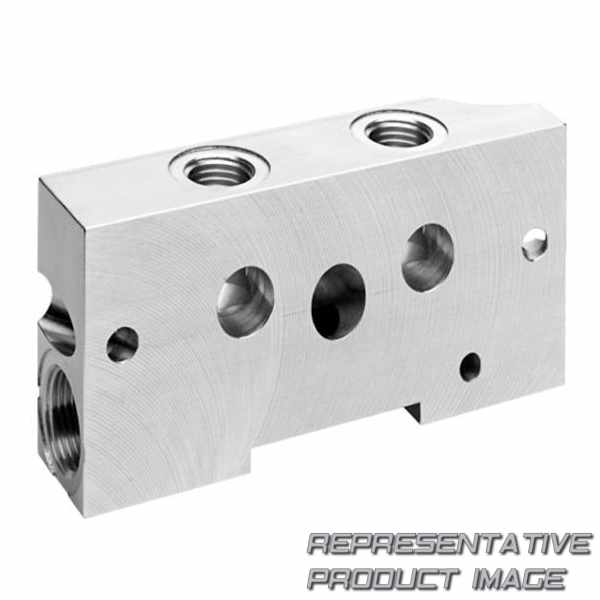

| Typ | manifold strip | ||
| compressed air connection 1 | g 3/8 | ||
| port 3 / 5 | g 1/4 | ||
| exhaust (3,5) | with directional exhaust (3/5) | ||
| pilot | internal | ||
| working pressure min. | -0.95 bar | ||
| min. ambient temperature | -25 °c | ||
| min. medium temperature | -25 °c | ||
| Medium | compressed air | ||
| mounting screw | with hexagon socket | ||
| Material base plate | aluminum |
| direction of pneumatic port (1) | on the side | ||
| direction of pneumatic port (3,5) | up | ||
| exhaust type | ports separated | ||
| frame size | 26 mm | ||
| Standards | iso 15407-1 | ||
| working pressure max | 16 bar | ||
| max. ambient temperature | 70 °c | ||
| max. medium temperature | 70 °c | ||
| Rastermaß | 22 mm | ||
| tightening torque for mounting screws | 4 nm |
