| Diameter | 25 mm | ||
| magnetic piston | with magnetic piston | ||
| easy2combine | capable | ||
| theoretical torque at | 6 bar | ||
| air consumption per rotation | 77.5 cm³ | ||
| max. permissible radial bearing load | 1480 n | ||
| theoretical torque | 6.5 nm | ||
| Dämpfung | elastic | ||
| angle of rotation max. | 180 ° | ||
| working pressure max | 8 bar | ||
| max. ambient temperature | 60 °c | ||
| max. medium temperature | 60 °c | ||
| oil content of compressed air min. | 0 mg/m³ |
| compressed air connection | m5 | ||

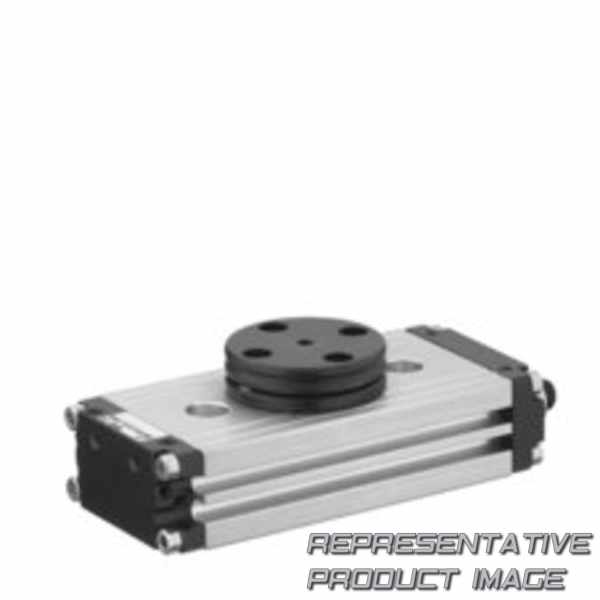

| rotary compact module version | double piston with rack | ||
| frame size | rcm-25 | ||
| min. swivel times | 0.25 s | ||
| max. permissible axial bearing load | 1160 n | ||
| max. permissible mass moment of inertia | 6,30 | ||
| repetitive precision | 0.2 ° | ||
| angle of rotation min. | 0 ° | ||
| working pressure min. | 2 bar | ||
| min. ambient temperature | 5 °c | ||
| min. medium temperature | 5 °c | ||
| Medium | compressed air |
